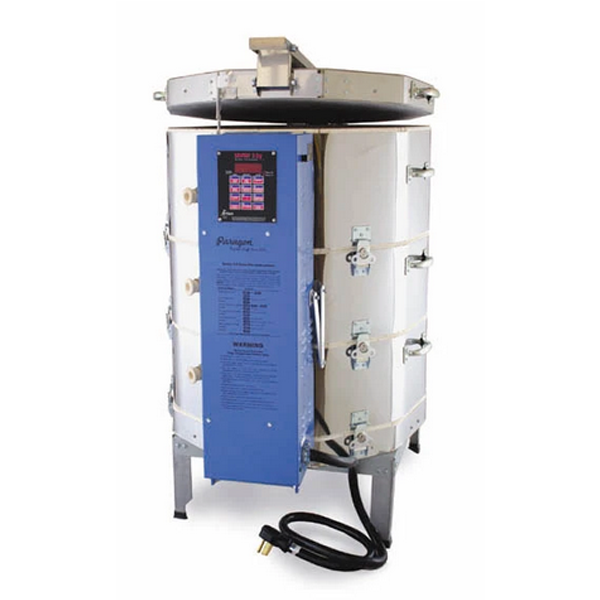

Paragon Kiln - TNF24

OPTIONAL Tall Heavy Duty Rolling Stand, 24” Square x 12” High

A deluxe, rock-solid kiln stand with locking casters, is now an option. STANDS ARE NOT INCLUDED. Please check the options box if you would like a stand included with your kiln order. You will enjoy the convenience of effortlessly moving the kiln out of the way when not in use. The stand is rock solid. It fits together with interlocking components that assemble with one size of bolt. (Ships unassembled.)

The 12” tall stand raises the kiln to a convenient height for loading and unloading. Should you need a vent, merely slide the collection cup of an Orton vent into a mounting bracket on the top of the stand.

Take advantage of the heat that radiates from the kiln. Load greenware on the lower shelf. The heat from the kiln will dry the ware to prepare it for the next firing. Save the time and electrical expense of drying the ware inside the kiln.

During busy seasons when orders are backlogged, you will be grateful you own a dependable Paragon kiln such as the digital TNF24. Studio owners call these kilns “real workhorses.”

Paragon studio kilns have withstood years of abuse in school environments. High school ceramics teachers fire these kilns unmercifully, without remorse. Yet the kilns keep going. People swear by them.

Hinged at the bottom, the switch box on 8, 10 & 12 sided digital Paragon kilns opens forward for easy maintenance. A folding support arm holds the box in the open position. The Sentry is mounted at the top of the switch box within easy reach. Operate it from a comfortable position.

The TnF-24 features sectional construction. Separate the kiln bottom and sections to repair bricks, change elements, or move the kiln down narrow stairwells or through the narrowest doorways. Twist-lock spring latches hold the assembled collars securely.

The top row of brick in the TNF24 is 2” high and without element grooves. It is less susceptible to damage during loading than a grooved brick.

The 10-sided digital TnF-24 comes in standard 2 ½” thick sidewalls and lid. The TNF24 bottom is 3” thick. For porcelain or stoneware, order the TNF24-3, rated to 2350°F. Since the TnF-24 studio kiln uses 2 ½” wall brick, we recommend it for low-fire ware, not for porcelain and stoneware.

The massive lid is easy to lift with Paragon's patented “LiteLid,” which does away with cumbersome pulleys and cords and reduces lid weight to only several pounds of pressure. Most people can lift the lid with one hand. Unlike pulleys and weights, the LiteLid is self-contained on the kiln. No need to drill holes in the ceiling for pulleys. The LiteLid sharply reduces wear between the lid and top rim of the firebrick. The truss and floating lid allow expansion of the lid. Ask competitors if their lid spring includes a truss and floating lid.

Something to consider if you already own a 12-sided kiln: Why purchase a 10-sided kiln such as the TnF-24 when you produce enough ware to fill a 12-sided kiln? It is because some ware fires more efficiently in a 10-sided kiln. Example: 10- and 12-sided kilns both fire four 10” wide bowls per shelf. When you own both sizes of kilns, you can choose the most efficient kiln for each size of ware. The 10-sided kiln is a good choice for those whose production depends on short firing cycles. Since 10-sided kilns are smaller than 12-sided, they can heat and cool faster. The 10-sided shelves are lighter than the 12-sided, and easier to lift.

A heavy galvanized steel base covers the reversible brick bottom completely. It folds up under the stainless case on all sides to strengthen the firing chamber. This is one more assurance that your Paragon kiln is built to last.

Thermocouple with “special limit” wire

The thermocouple senses temperature inside the kiln. It is the small rod that extends into the firing chamber. The ¼” wide Type-K, 14-gauge, exposed-tip thermocouple is made with special-limit wire for superior accuracy. The exposed tip gives the controller a fast response time for even temperatures during holds. The thermocouple is made in America to our exacting standards.

Ceramic Kiln Instruction & Service and Sentry Controller Manuals

Want to know more about this kiln before you buy? Click here to download the manual and read more on ceramic kilns. Download the manual for the Sentry 2.0 12-Key Controller here to learn more about this controller.
