Kilns Under $7500 Ship Free To The US 48!

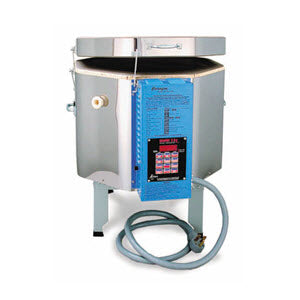

Paragon Kiln - TNF1613

$2,10432 $2,33814

The TNF1613 3" wall kiln is designed for porcelain firing, accommodating ceramics, china paint, decals, and gold. With its spacious 8-sided interior, it's suitable for teachers specializing in china paint or dolls. Despite being 43% larger than the 66-3 series, it maintains affordability. Powered by 6400 watts, it ensures efficient firing and compensates for aging elements or low voltage. Equipped with a high-precision thermocouple, it delivers accurate temperature control. Crafted in America to exacting standards, it offers reliability and performance for porcelain firing applications.

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Product Specifications
Model: Paragon TNF1613
Dimensions Inside: 16.5" (width) x 13.25" (depth)
Dimensions Outside: 25.5" (width) x 28.5" (depth) x 32" (height)
Shelf Size: 15" Round Shelf - NOT INCLUDED
Elements: Side Elements
Max Temp: Fires to 2350° F
Voltage: 240 volts
Amperage: 27 amps
Watts: 6400 watts

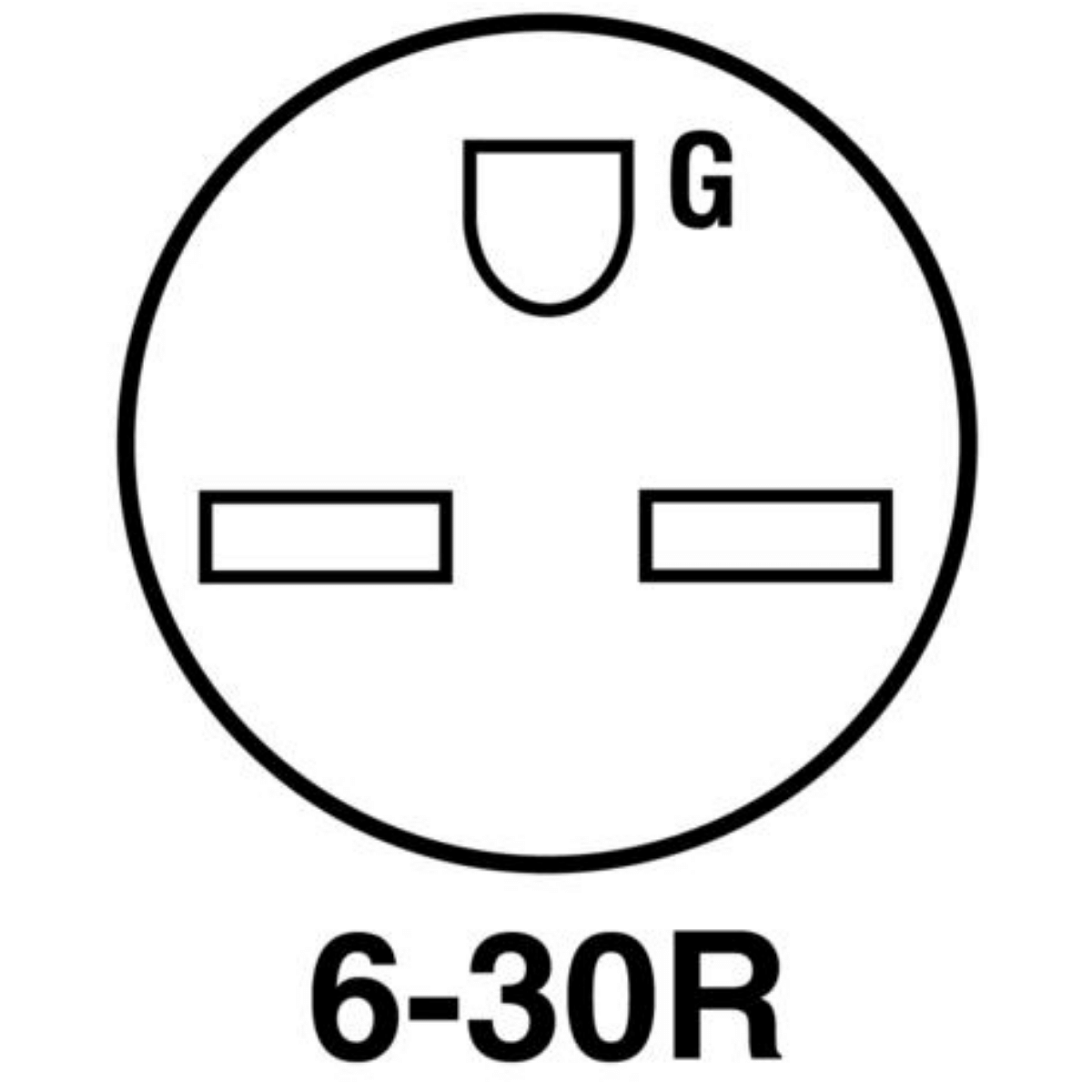

Receptacle: 6-30R
Shipping Weight: 198# (freight)

    Product Description

    The TNF1613 3" wall kiln is designed for porcelain firing, accommodating ceramics, china paint, decals, and gold. With its spacious 8-sided interior, it's suitable for teachers specializing in china paint or dolls. Despite being 43% larger than the 66-3 series, it maintains affordability. Powered by 6400 watts, it ensures efficient firing and compensates for aging elements or low voltage. Equipped with a high-precision thermocouple, it delivers accurate temperature control. Crafted in America to exacting standards, it offers reliability and performance for porcelain firing applications.

    What's Included
    • Sentinel SmartTouch Controller
    • Lock-in lid support with a positive catch
    • Wide-view tapered peepholes
    • Ventilated, louvered switch box
    • Two hand lifts
    • Heavy-duty kiln stand with mar-proof plastic feet
    • Full-formed, galvanized steel base
    • Fall-away two-stage Prop-R-Vent
    • Coated lid, peepholes, and rim of firebricks
    • Heavy-gauge stainless steel case
    • Full firing capacity: fire ware directly on the brick bottom
    • Reversible brick bottom
    • Dropped, recessed brick grooves, which eliminate element pins
    • 1-year limited warranty (Refer to manufacturer's warranty)

    Key Information

    OPTIONAL Heavy Duty Rolling Stand, 18” Square x 18” High

    A deluxe, rock-solid kiln stand with locking casters, is now an option. STANDS ARE NOT INCLUDED. Please check the options box if you would like a stand included with your kiln order. You will enjoy the convenience of effortlessly moving the kiln out of the way when not in use. The stand is rock solid. It fits together with interlocking components that assemble with one size of bolt. (Ships unassembled.)

    The 18” tall stand raises the kiln to a convenient height for loading and unloading. Should you need a vent, merely slide the collection cup of an Orton vent into a mounting bracket on the top of the stand

    The TNF1613 3" wall kiln is designed for porcelain, so it easily fires ceramics, china paint, decals, and gold. The size is ideal for teachers of china paint or dolls. The 8-sided, 16 ½” wide and 13 ¼” deep interior is as tall as standard 7-sided kilns. The TNF1613-3 kiln is 43% larger than the 66-3 series, yet costs only a few dollars more.

    Extra Wattage

    The TNF1613-3 plugs into a 30 amp, 240-volt outlet. It uses 6400 watts of power, more watts per cubic foot than conventional kilns. The extra wattage helps compensate for aging elements or low voltage. This extra power is ample for cone 10 and, if desired, rapid heating. Elements last longer because the extra wattage and thicker 3" firebricks help the elements reach porcelain temperatures without strain.

    Thermocouple with “special limit” wire

    The thermocouple senses temperature inside the kiln. It is the small rod that extends into the firing chamber. The ¼” wide Type-K, 14-gauge, exposed-tip thermocouple is made with special-limit wire for superior accuracy. The exposed tip gives the controller a fast response time for even temperatures during holds. The thermocouple is made in America to our exacting standards.

    Paragon Kiln - TNF1613 - Heat Treat Now
    Paragon Kilns

    Paragon Kiln - TNF1613

    $2,10432 $2,33814
    Model: Paragon TNF1613
    Dimensions Inside: 16.5" (width) x 13.25" (depth)
    Dimensions Outside: 25.5" (width) x 28.5" (depth) x 32" (height)
    Shelf Size: 15" Round Shelf - NOT INCLUDED
    Elements: Side Elements
    Max Temp: Fires to 2350° F
    Voltage: 240 volts
    Amperage: 27 amps
    Watts: 6400 watts
    Receptacle: 6-30R
    Shipping Weight: 198# (freight)



    View product
