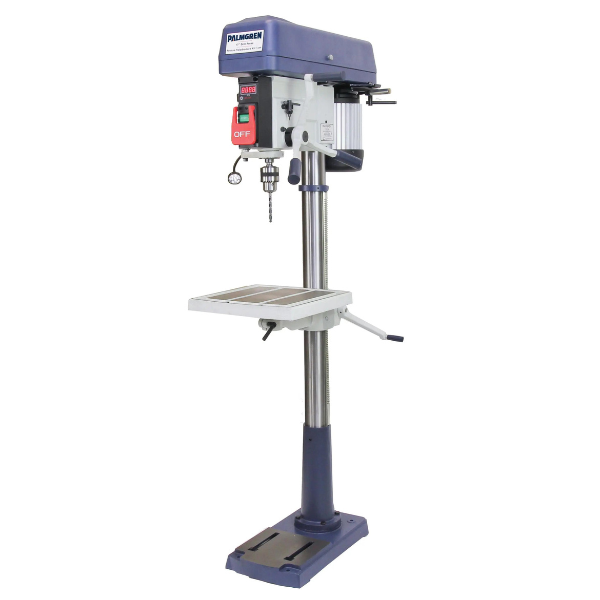

17" 1Ph 16-Speed Floor Step Pulley Drill Press

$1,14400 $1,30000

These step pulley drill presses are robustly built to provide a stable foundation for all drilling tasks and offer a wider range of spindle speeds than any others in their class. Their weight and rigidity ensure the precise tolerances needed for metalworking applications are consistently maintained.

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Product Specifications
AMPS 10.2/5.1
Capacity Cast Iron 7/8"
Drill Press Model Floor Model
Drill Press Type Step Pulley
Motor HP 1
Overall Dimensions (LxWxH) 68" H x 15-1/2" W x 28" D
Phase Single
RPM 138 - 3476
Spindle Taper MT2/JT3
Spindle Travel 5
Swing 17"
Table Dimensions 14-3/8" x14-3/8"
Table Slots 5/8"
Voltage 120/240
Warranty 3 Year
Unit of Measure Each
Product Height (in) 10.5
Product Length (in) 54.3
Product Width (in) 25.8
Product Weight (lbs) 216

Product Description

These step pulley drill presses are robustly built to provide a stable foundation for all drilling tasks and offer a wider range of spindle speeds than any others in their class. Their weight and rigidity ensure the precise tolerances needed for metalworking applications are consistently maintained.

What's Included
  • Fully enclosed spindle with spaced bearings for maximum spindle support and accurate drilling operations
  • Maximum spindle run out of 0.0005"
  • Extended quill/spindle travel ideal for deep hole applications
  • LED readout for spindle speeds
  • Quick change vertical depth stop for accurate, repeatable feed length
  • Includes chuck with key and arbor
  • Rack and pinion table raiser
  • Table tilts 45 degrees right and left and rotates 360 degrees around the column
  • Front mounted industrial paddle type power switch
  • 3-year warranty
  • Model Nr: 9680177
