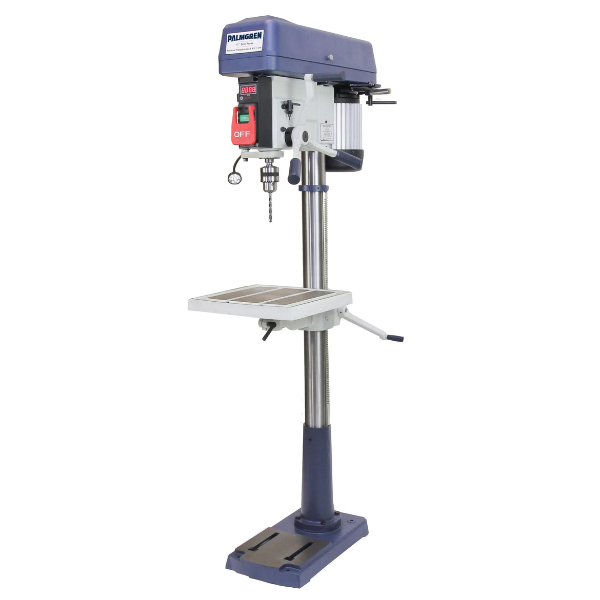

20" 16- Speed Floor Step Pulley 1PH Drill Press

$1,58400 $1,80000

Palmgren's step pulley drill presses are robustly built to provide a stable foundation for all drilling tasks and offer a wider range of spindle speeds than any others in their class. Their weight and rigidity ensure the precise tolerances needed for metalworking applications are consistently maintained.

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Product Specifications
AMPS 14.2/7.1
Capacity Cast Iron 1-1/4"
Drill Press Model Floor Model
Drill Press Type Step Pulley
Model Number 80209
Motor HP 1/1/2002
Overall Dimensions (LxWxH) 70" H x 19-1/2" W x 30" D
Phase Single
RPM 120 -3605
Spindle Taper MT2/JT4
Spindle Travel 6
Swing 20"
Table Dimensions 19-1/4" x 18-3/4"
Table Slots 5/8"
Voltage 120/240
Warranty 3 Year
Unit of Measure Each
Product Height (in) 13
Product Length (in) 58
Product Width (in) 29
Product Weight (lbs) 352

Product Description

Palmgren's step pulley drill presses are robustly built to provide a stable foundation for all drilling tasks and offer a wider range of spindle speeds than any others in their class. Their weight and rigidity ensure the precise tolerances needed for metalworking applications are consistently maintained.

What's Included
  • Fully enclosed spindle with spaced bearings for maximum spindle support and accurate drilling operations
  • Maximum spindle run out of 0.0005"
  • Extended quill/spindle travel ideal for deep hole applications
  • LED readout for spindle speeds
  • Quick change vertical depth stop for accurate, repeatable feed length
  • Includes chuck with key and arbor
  • Rack and pinion table raiser
  • Table tilts 45 degrees right and left and rotates 360 degrees around the column
  • Front mounted industrial paddle type power switch
  • Warranty 3 Years
  • Model No: 9680209

Key Information

Product Manual

Palmgren

20" 16- Speed Floor Step Pulley 1PH Drill Press

$1,58400 $1,80000
AMPS 14.2/7.1
Capacity Cast Iron 1-1/4"
Drill Press Model Floor Model
Drill Press Type Step Pulley
Model Number 80209
Motor HP 1/1/2002
Overall Dimensions (LxWxH) 70" H x 19-1/2" W x 30" D
Phase Single
RPM 120 -3605
Spindle Taper MT2/JT4
Spindle Travel 6
Swing 20"
Table Dimensions 19-1/4" x 18-3/4"
Table Slots 5/8"
Voltage 120/240
Warranty 3 Year
Unit of Measure Each
Product Height (in) 13
Product Length (in) 58
Product Width (in) 29
Product Weight (lbs) 352
