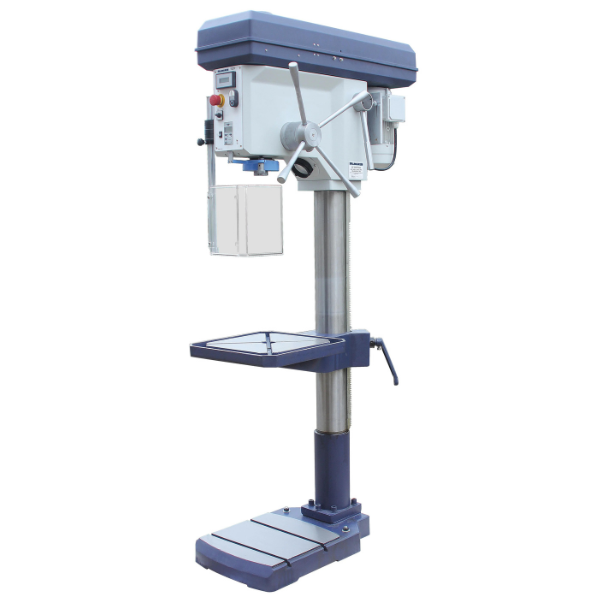

22" 9-Speed Step Pulley Drill Press Floor 230V 3PH

$4,72384 $5,36800

Palmgren's premier line of step pulley drill presses offers a wide range of speeds and is engineered for heavy, accurate, continuous use. The long-lasting aluminum alloy pulleys are fully machined and balanced, paired with a Gates 7M industrial V-ribbed V-belt that ensures better grip and power with a 10,000-hour service life. Speed changes are quick and effortless, thanks to the exclusive quick-change handle and motor spring plate, which maintain consistent belt tension. The fully enclosed machine tool spindle boasts a concentricity of 0.0005” at the spindle nose. These drill presses are versatile, capable of performing various hole-making operations, including drilling, tapping, reaming, boring, spot facing, counter-boring, and chamfering on any material.

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Product Specifications
Column Diameter 115 mm / 4.528"
Distance spindle-table (max.) 790 mm / 31.102"
Drill Press Model Floor Model
Drill Press Type Step Pulley
Model Number B34H
Motor HP 3
Number of Pulley Steps 2 x 9 steps
Phase Three
Quill Travel 160 mm / 6.299"
Spindle Taper MT4/JT3
Table Dimensions 420 x 400 mm / 16.535" x 15.748"
T-Slot Size/Distance/Quantity 14 mm / .551"
Voltage 230
Warranty 3 Year
Working Range 22"
Working surface base L x W 390 x 370 mm / 15.354" x 14.567"
Unit of Measure Each
Product Height (in) 74.61
Product Length (in) 36.14
Product Width (in) 23.03
Product Weight (lbs) 682

Product Description

Palmgren's premier line of step pulley drill presses offers a wide range of speeds and is engineered for heavy, accurate, continuous use. The long-lasting aluminum alloy pulleys are fully machined and balanced, paired with a Gates 7M industrial V-ribbed V-belt that ensures better grip and power with a 10,000-hour service life. Speed changes are quick and effortless, thanks to the exclusive quick-change handle and motor spring plate, which maintain consistent belt tension. The fully enclosed machine tool spindle boasts a concentricity of 0.0005” at the spindle nose. These drill presses are versatile, capable of performing various hole-making operations, including drilling, tapping, reaming, boring, spot facing, counter-boring, and chamfering on any material.

What's Included
  • Built in halogen work light
  • Forward & reverse switch
  • Drill depth stop
  • Digital depth gauge
  • Digital speed display
  • T-slotted table and base Interlocking spindle safety guard
  • Electric interlock on the pulley cover
  • Magnetic overload protection
  • Built in tool ejector
  • Chuck and arbor
  • 3-year warranty
  • Model No: 9680216
