AmeriBrade - Kit- Tilting Platen on Arm

$18000

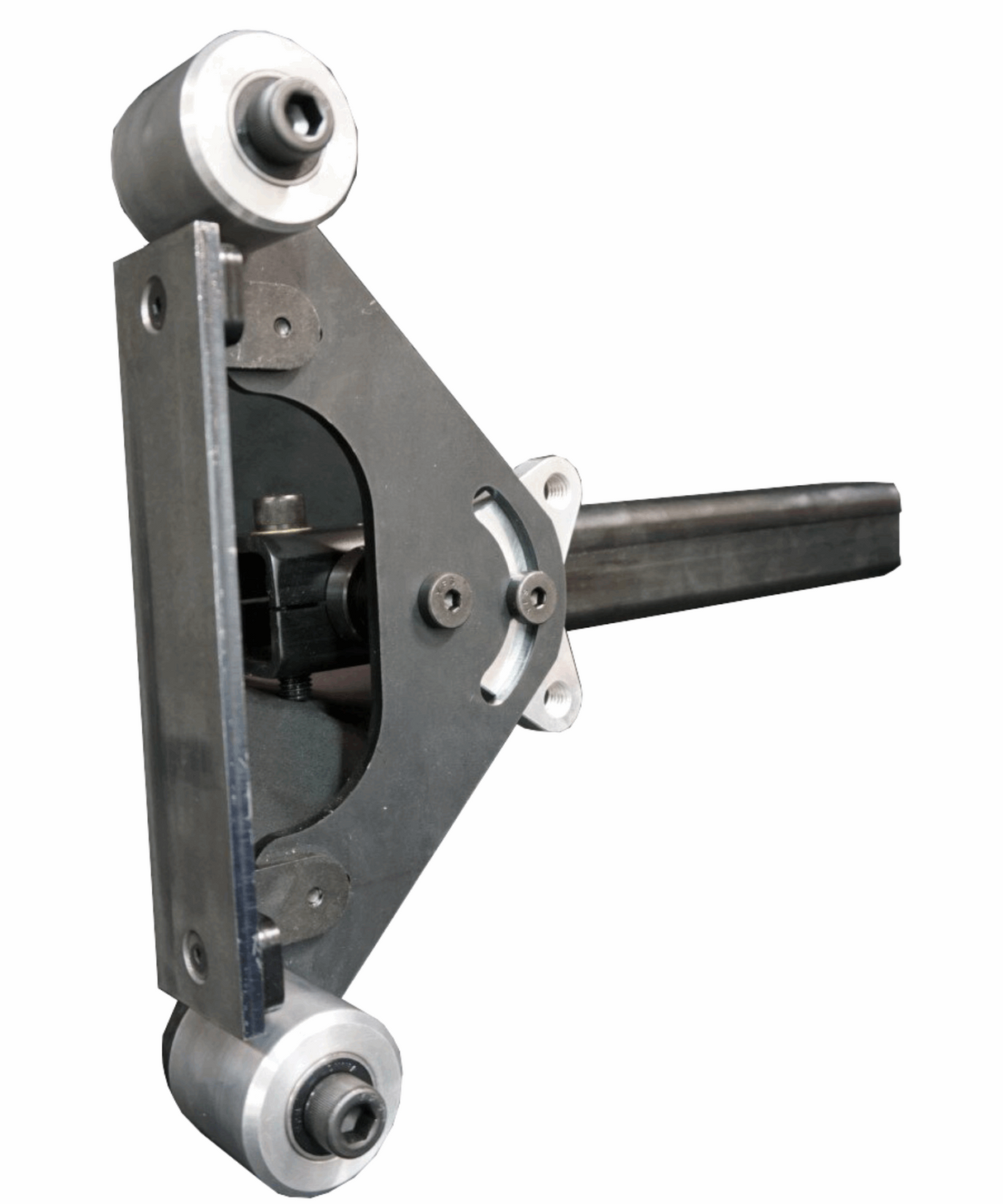

The side plate and platen plate are laser cut from 1/4" thick P&O steel. Platen wheels are CNC machined 6061 aluminum and are mounted with 1/2"-20 socket head cap screws.  The wheel bearings are separated by a crush sleeve to protect them from over-tightening. The platen plate is mounted with 1/4"-20 countersunk flathead fasteners and can be adjusted into tangency with the platen wheels.

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Product Specifications

Tilting Platen

  • Wheel Spacing: 10" center to center
  • Wheel Diameter: 2"
  • Wheel Width: 2"
  • Platen Width: 1.9"
  • Mounting hole and slot sized for 1/2" fasteners, 1.5" apart

Accessory Arm

  • 2" square accessory arm
  • 15" Long
  • Black oxide coated
  • 1/4" wall thickness
  • 1/2-13 threaded holes, 1.5" apart
  • 3/4” spindle mount with adjustable rotation and offset
  • 3/4” shaft collar to save offset adjustment



Product Description

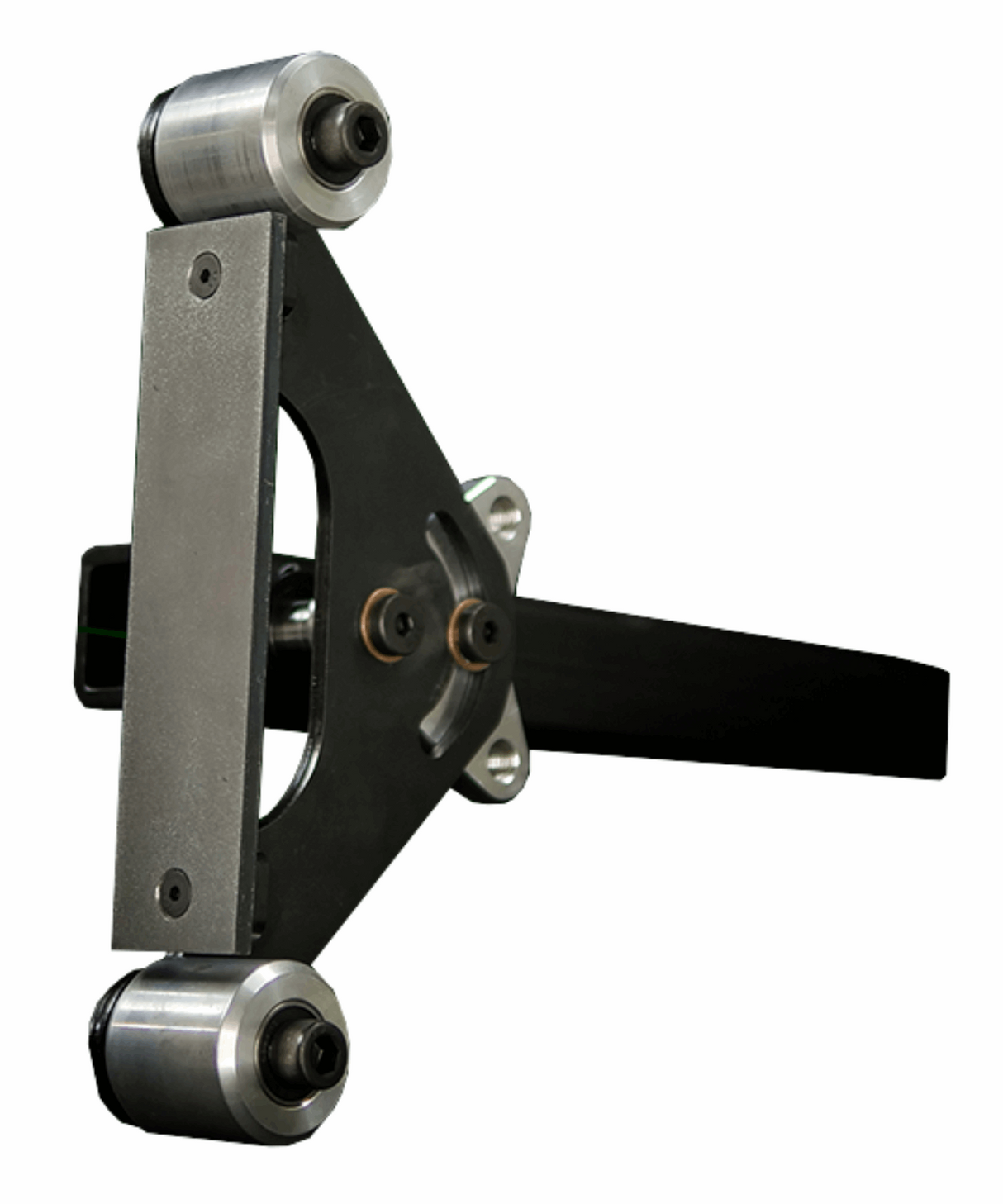

The side plate and platen plate are laser cut from 1/4" thick P&O steel. Platen wheels are CNC machined 6061 aluminum and are mounted with 1/2"-20 socket head cap screws.  The wheel bearings are separated by a crush sleeve to protect them from over-tightening. The platen plate is mounted with 1/4"-20 countersunk flathead fasteners and can be adjusted into tangency with the platen wheels.

Please note, accessory arms are 2” square. If you do not have an AmeriBrade grinder, please check what size your accessory arms should be.

What's Included
  • Tilting Platen
  • Accessory arm
    Refer to Manufacturer's Warranty)
