Atlas Knife & Tool - Atlas Forge - Best for Knife Makers

$35000

Stainless steel and brass construction. All fittings are custom made, steel 3/8″ flare 45° fitting. Pressure gauge is rated to 40 PSI, regulator is rated for 20 PSI. This burner will not function while clamped in a vise.  A forge chamber with back-pressure is required for proper function. Make sure to clean out any spiderwebs inside the burner tube.  Seriously, spiders love to build nests inside these!

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

High Efficiency
and Portable
Precision-Crafted
Hardened Steel
Designed for
Longterm Durability

Product Specifications

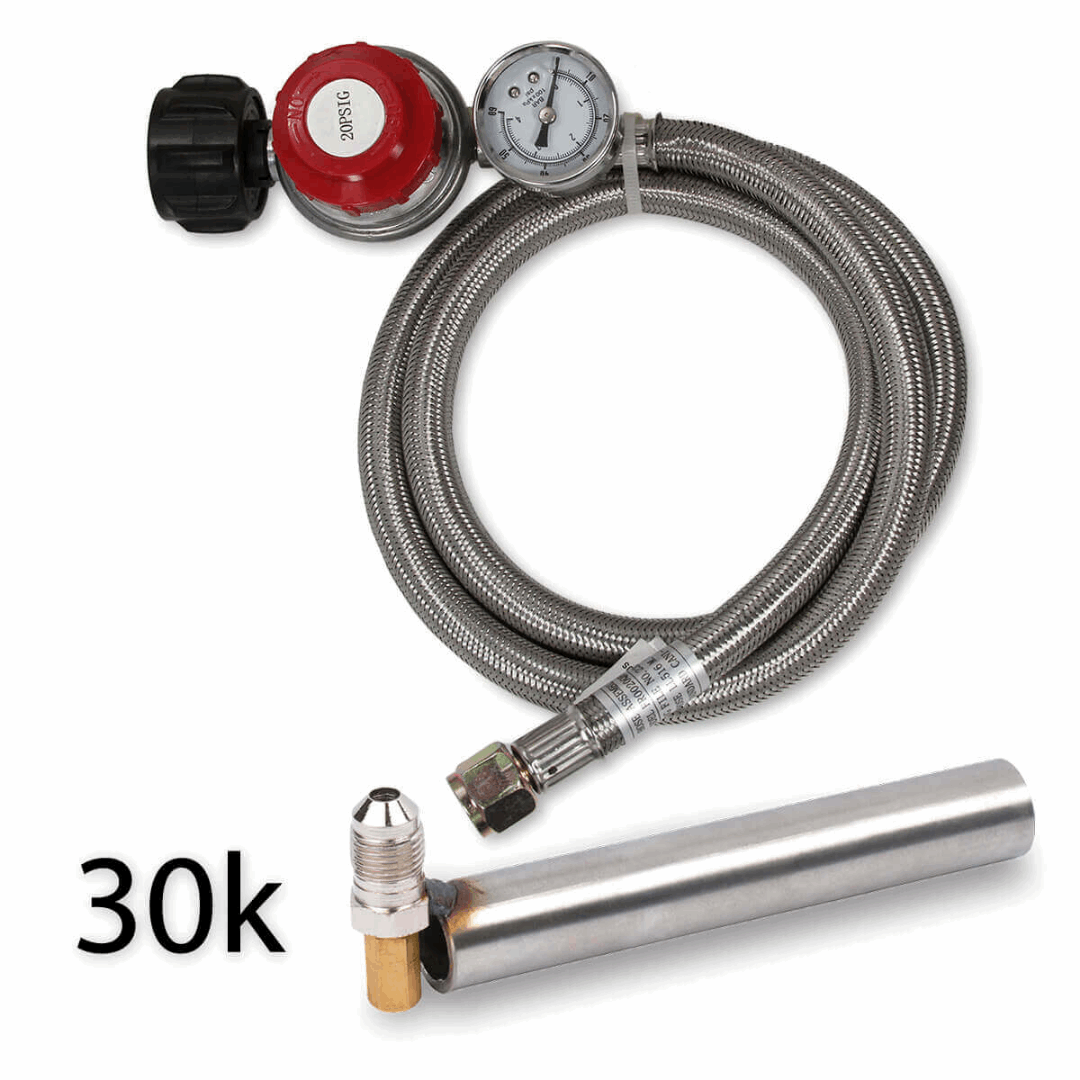

  • Designed for 3-4″/5-8″ diameter chamber forges (two brick, 8″ round tank)
  • Dimensions: 9 x 6 x 3 in
  • 30k burner produces 38k BTU @ 20 PSI
  • 6″ burner tube length
  • 0.840″ outside diameter
  • 100k burner produces 105k BTU @ 20 PSI
  • 6″ burner tube length
  • 1.050″ outside diameter
  • Weight 2 lbs.



Product Description

Stainless steel and brass construction. All fittings are custom made, steel 3/8″ flare 45° fitting. Pressure gauge is rated to 40 PSI, regulator is rated for 20 PSI. This burner will not function while clamped in a vise.  A forge chamber with back-pressure is required for proper function. Make sure to clean out any spiderwebs inside the burner tube.  Seriously, spiders love to build nests inside these!

What's Included

Key Information

Warranty: Materials and Construction, 1 Year. Not warranted against burn out due to improper mounting, lack of forge lining maintenance or flash back (burning in mixing tube due to improper operating parameters or installation).

Fitting must be tightened with a wrench to 17-19 Ft/Lbs of torque, or it will leak and possibly burn where you don’t want it to!

We do not provide a flare with our burners. Our burners are not a hand held torch, they go into a stationary device where a flare is not needed (the refractory lining creating the flare/flame holder).
