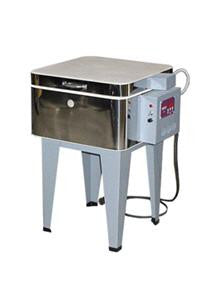

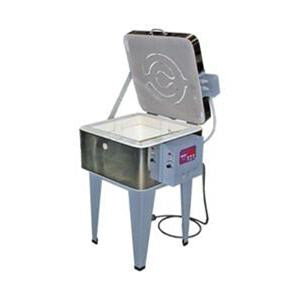

Olympic Kiln - Champ XL

$1,32475 $1,55000

The Olympic Champ XL has the same inside dimensions as the 146GFE but, has a lid element only. This is the largest kiln you can run on household power without making any electrical modifications. The 13" square shelf in this kiln allows for even bigger projects.

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Product Specifications
Model:

Olympic Champ XL
Inside Dim: 14.5" (length) x 14.5" (width) x 6" (depth)
Outside Dim: 24" (width) x 24" (depth) x 29" (height)
Shelf Size: 13” Square Shelf - NOT INCLUDED
Max Temp: Fires to 1700° F
Voltage: 120 volts
Amperage: 15 amps (Requires a 20amp Breaker)
Watts: 1800 watts

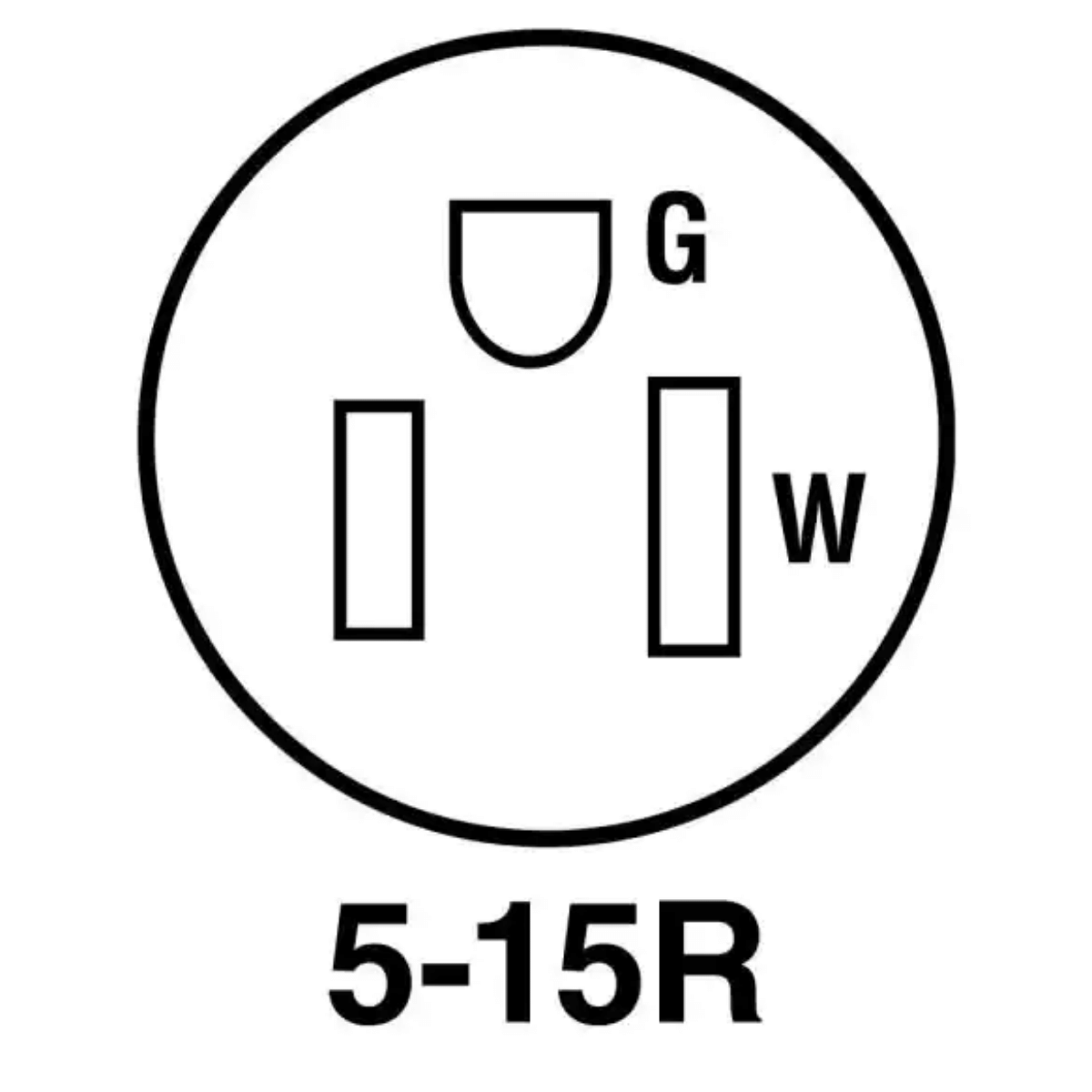

Receptacle: 5-15R
Ship Wt: 128# (UPS ships in two boxes)

Product Description

The Olympic Champ XL has the same inside dimensions as the 146GFE but, has a lid element only. This is the largest kiln you can run on household power without making any electrical modifications. The 13" square shelf in this kiln allows for even bigger projects.

If you are a renter, or if you live in a really old home that can't be upgraded, this kiln will allow you to work on larger projects by just plugging it in anywhere. The stand is nice and tall, so you won't have to bend over to load it. Best of all, this kiln is sent via UPS, making set up even easier.

What's Included
  • FREE SHIPPING in the contiguous US!
  • KilnStar 12-Key Digital Bartlett Controller
  • Peephole Plugs
  • Stand
  • Mechanical Relays
  • Instruction Manual
  • Two-Year Warranty (The manufacturer's warranty as well as the optional add-on Extended Warranty Protection Plan do not cover a service contractor to provide in-home kiln repairs.)

Key Information

Why Upgrade from Mechanical Relays to Solid-State Relays?

Mechanical Relays, which come standard on most kilns have internal moving parts which over time wear out and need to be replaced.  Kiln manufacturers recommend you replace your mechanical relays approximately every 2 years.  Solid-state relays have no moving parts and last far longer than standard mechanical relays and offer far better temperature control during hold times.  Since solid-state relays also have no moving parts to wear out, they NEVER need to be replaced.  You will notice that solid-state relays are silent.  The only sound you will hear is just the reassuring hum of the heating elements.  So, this factory upgrade saves you potential down time from having to wait for new relays to arrive, potential over-fires from relays sticking in the closed position, potential aggravation from having to learn how to remove and replace the mechanical relays yourself.  We think this upgrade is well worth the cost and will save you time and aggravation over the life of your kiln.

Check out the Olympic Kilns Electrical Parts Kits... never experience downtime again because you didn’t have a part on hand!
