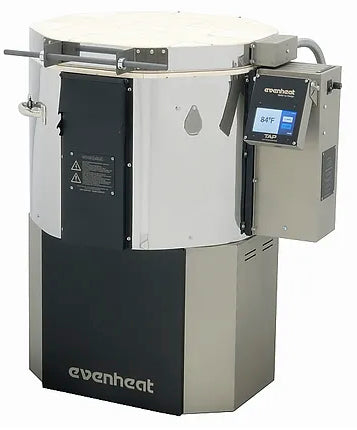

Evenheat Kiln - GTS 18

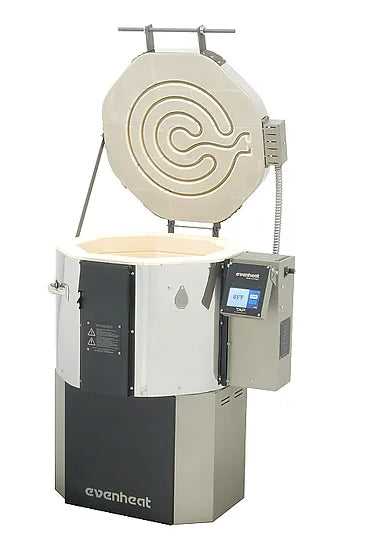

Top Load

The GTS 18 is a top loading design and offers a chamber 17.5" diameter 13.5" deep.

Full Firebrick Design

The GTS 18 is constructed completely of firebrick. Firebrick is desired in a glass kiln as it stores heat in the beginning of the firing which acts to smooth out temperature swings. It then releases heat slowly at the completion of the firing resulting in very calm annealing, especially over an annealing range. It's just beautiful. As with any glass kiln, you want a portion of firebrick in the mix.

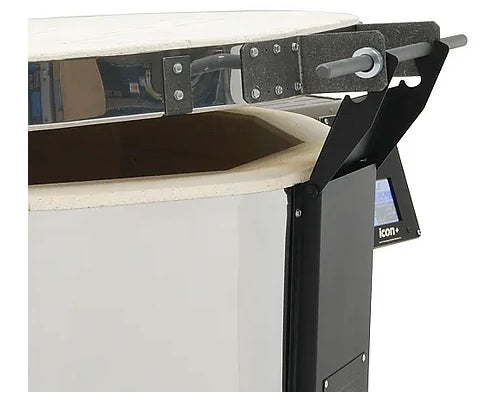

Swing View Equipped

GTS 18 temperature controls are fitted to our Swing View Adjustable Enclosure. The swing view is a pivoting, swing-up enclosure that allows you to
rotate the control to a comfortable viewing and programming angle. Once you're done, lay it back down to see it from across your studio. It's
that simple.

The swing view pairs well with touchscreen controls like the TAP II, Icon+ and Icon as viewing angle can be perfectly aligned. You'll love it.

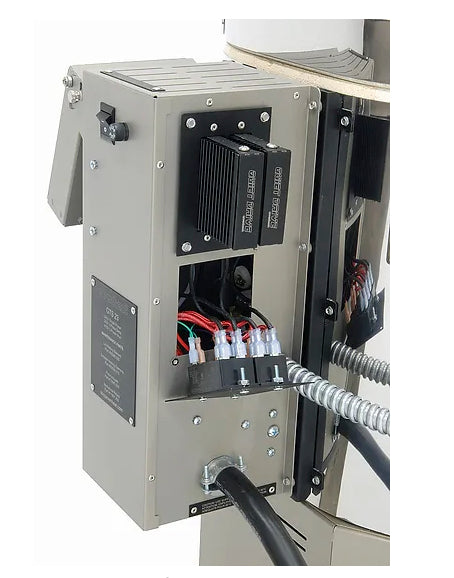

Relay Access Port

The GTS 18 incorporates our Relay Access Port for simple, no-panel-off relay replacement. Simply
remove the access plate to gain access to the mechanical relays. There's no need to remove the control panel and dig into the internal wiring. It's absolutely simple and effective and all it takes is a
screwdriver!

​It's a given that mechanical relays will fail at some point. This relay access port really comes in handy when they do.

Now Standard With Quiet Drive Solid State Relays

All Heat Treating Ovens, Knife Ovens, and Glass Kilns (except for Studio Pro STP) now come equipped with Quiet Drive Solid State Relays. The Quiet Drive Solid State Relay System offers tight temperature control, high reliability and increased heating element life. The Quiet Drive is arguably the best designed and best performing solid state system on the market.

Options:

Multiple Control Options

The GTS 18 is available in a variety of controls including the Icon, Icon+, Tap II and Rampmaster 3. At Evenheat we take the best control platforms on the market and make them even better by adding Special Limits thermocouples for precise temperature sensing and non-metallic faceplates for stellar Wi-Fi reception for on-line Apps. Visit our Controls tab to learn more about our controls and why they represent the very best that you can get.

Looking to replace a worn-out or broken shelf? Enhance your firing experience with our custom shelf kits tailored for the Evenheat Kiln - GTS 18 kiln - Order 15" Hexagon Full Shelf Kit or 16" Hexagon Full & Half Shelf Kit now!
