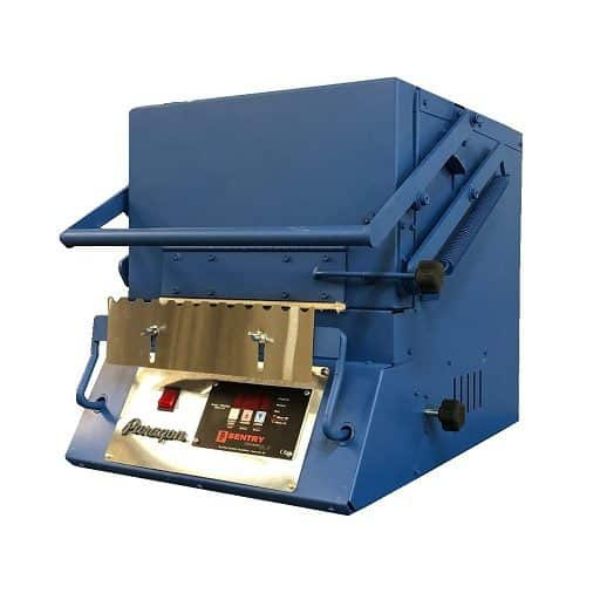

Paragon Kiln - F120

$2,27764 $2,53071

Anneal large glass figurines in the digital Paragon F120 lamp working kiln. Raise the spring-loaded vertical-drop door to insert a glass figurine with a punty rod. Lower the door. The punty rod extends outside the firing chamber through the smaller 2” x 8” punty rod door. This allows the glass to anneal safely.

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Product Specifications
Model: Paragon F120
Dimensions Inside: 10.75" (width) x 11" (depth) x 7" (height)
Dimensions Outside: 10.5" (width) x 23" (depth) x 20" (height)
Shelf Size: 10" x 10" Square - NOT INCLUDED
Elements: Top Element Only
Max Temp: Fires to 1700° F
Voltage: 120 volts
Amperage: 14 amps
Watts: 1680 watts

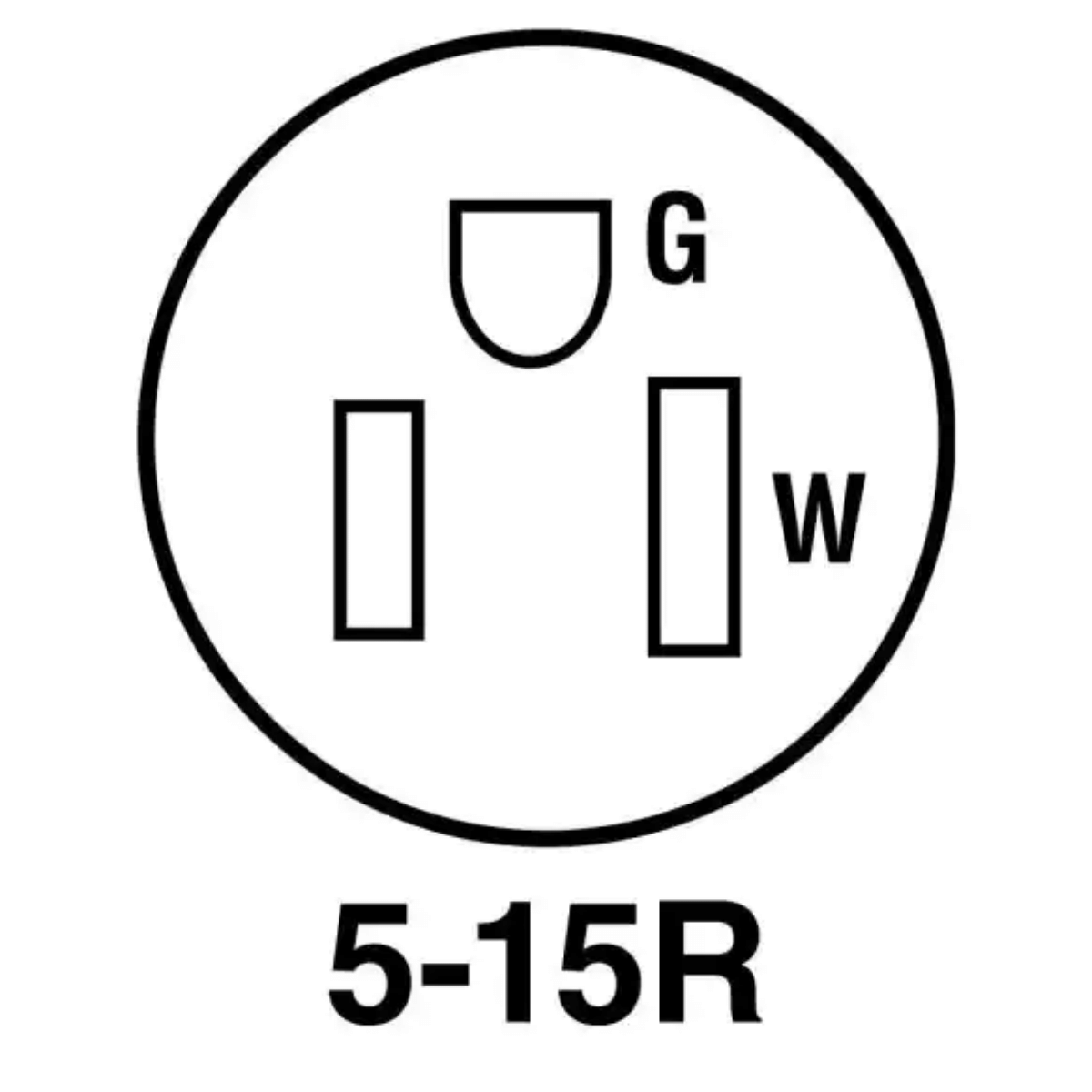

Receptacle: 5-15R
Shipping Weight: 125# (Freight)

Product Description

Anneal large glass figurines in the digital Paragon F120 lamp working kiln. Raise the spring-loaded vertical-drop door to insert a glass figurine with a punty rod. Lower the door. The punty rod extends outside the firing chamber through the smaller 2” x 8” punty rod door. This allows the glass to anneal safely.

You can make figurines up to 5” tall in the F120. Maintain the annealing temperature indefinitely with the Genesis Mini Touch Screen Controller.

Ease of operation will delight you. Never before has lamp work been so easy in this price range. Imagine the massive, award-winning figurines you will make with this kiln.

Available as top fire or side fire!

What's Included
  • Genesis Mini Touch Screen Controller
  • Solid State Relays - NEW! Standard on all F120 Models!
  • Door Cut Off Switch - NEW! Standard on all F120 Models!
  • Safety pilot light
  • 2 ½” insulating refractory firebricks in the roof, walls, and bottom
  • Heavy-duty Conversion Stand
  •  2-Year Limited Warranty (Refer to manufacturer's warranty)

Key Information

 Conversion stand included with the F120

The F120 comes with a heavy-duty Conversion Stand. The Conversion Stand adds a mandrel holder (also called a point rest) to your F120. Simply place the kiln on top of the Conversion Stand. Then adjust the mandrel holder vertically and horizontally. The holder slides inside steel tubes. The stainless steel mandrel rest includes 7 slots.

Pinless element grooves

The F120 elements are mounted in pinless grooves in the 3” thick firebrick roof. The element coils are wider than the groove opening, so the elements stay in place without pins. With the element in the top, you can also fuse and slump glass.

Imagine the glass you could sag, slump, and fuse with this kiln. Make small pendants, earrings, cufflinks, and even bracelets. Enjoy the glittering beauty of dichroics.

Solid State Relays

The Paragon F120 kiln has solid-state relays that are mounted to aluminum heat sinks. SSR's last far longer than standard mechanical relays and offer better temperature control during holds. SSR's also have no moving parts to wear out. You will also notice is that SSR's are silent. The only sound you will hear just the reassuring hum of the heating elements.

Interested in Making Your Own Metal Parts and Pieces?

What is Lost Wax Casting? It is the process of making or carving a shape in wax, then making a mold of the wax shape, and then casting that shape into metal from the mold. The mold is a negative image of the wax. The wax is melted out of the mold through hollow channels called sprues. Lost wax burnout is the process of preparing a casting mold for the melted metal that will be poured into it.

Stainless Steel Wax Trays

If you want to do Lost Wax Casting, you'll need a stainless steel wax tray. Here's the one you'll need for this kiln; a Stainless Steel Wax Tray, 9″ X 8.5.″ This Stainless Steel Wax Tray system will fit well in your kiln and allow you to do lots of wax burnout.

Place your molds on the removable expanded metal top. The wax will drip from the molds into the tray underneath. Then remove the wax tray before the kiln gets hotter than 300°F / 148°C. Note: Burning wax inside a kiln can damage the firebricks. Check out this 9 x 8.5" Stainless Steel Wax Tray out to help you in your projects. Here's the link.

Want to learn more about Lost Wax Casting? Here is a link to a cool internet guide we found that you can use as a reference: Lost Wax Casting Tutorial and Guide

Kiln Accessories

Need other accessories for your kiln? Click the link here to explore more Kiln Accessories.
