    Paragon Kiln - F500

    $5,831.52 USD
    $5,248.37 USD
     per
    Ask a question

    SAFE & SECURE PAYMENTS

    • American Express
    • Diners Club
    • Discover
    • Mastercard
    • Shop Pay
    • Visa

    Product description

    Model: Paragon F500
    Dimensions Inside: 24" (width) x 18" (depth) x 22.25" (height)
    Dimensions Outside: 35" (width) x 29" (depth) x 38" (height)
    Elements: Side Elements
    Max Temp: Fires to 1700° F
    Voltage: 240 volts
    Amperage: 41.7 amps
    Watts: 10,000 watts

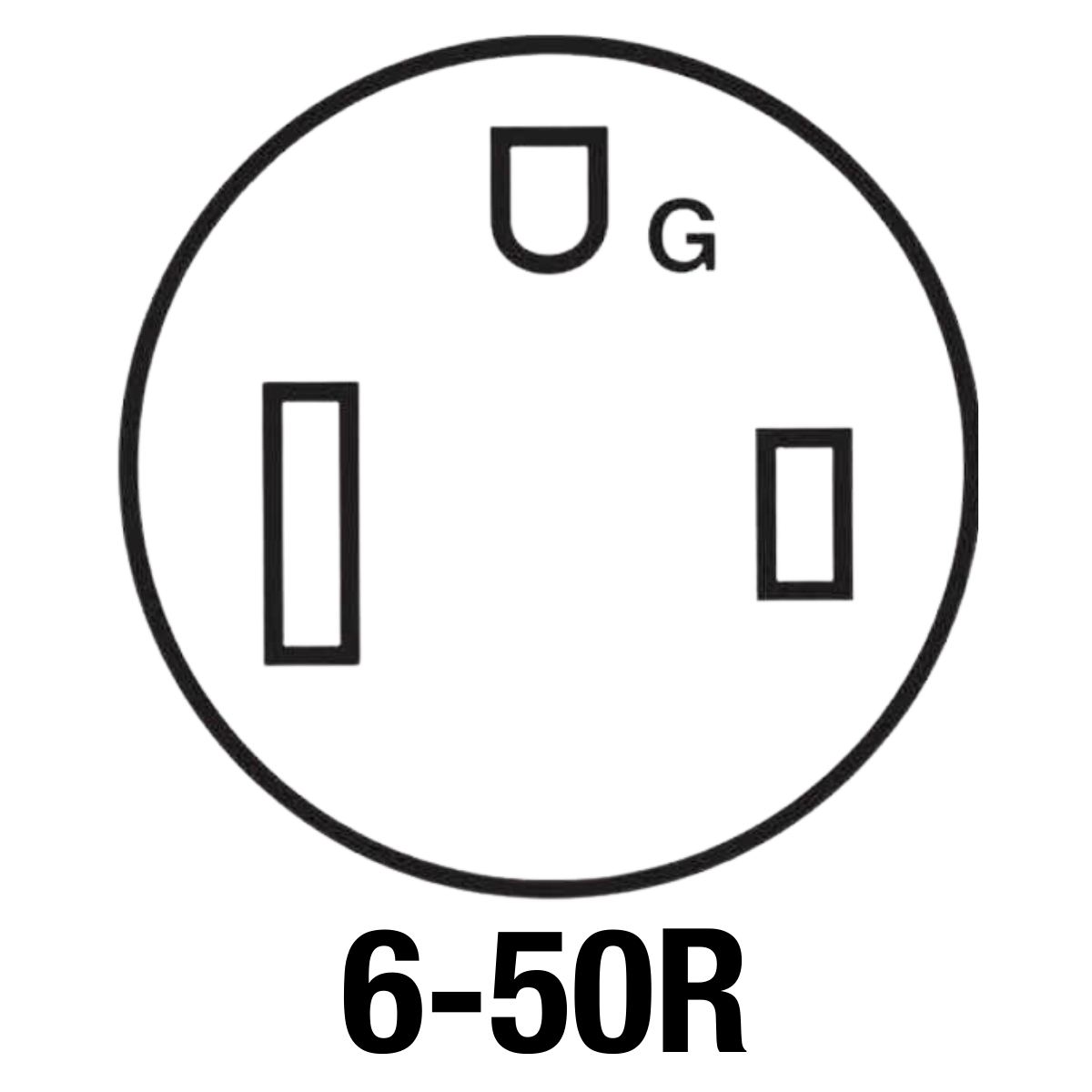

    Receptacle: 6-50R
    Shipping Weight: 614 lbs. (freight)


    Includes:

    • Sentinel Mini Touchscreen Controller
    • 15” deep firing chamber (measured with doors closed)
    • 3” thick firebrick roof, walls, door, and floor
    • Solid State Relays - NEW! Standard on all F500 Models!
    • On/Off Safety Switch - NEW! Standard on all F500 Models!
    • Precisely balanced counter-weight vertical-drop door
    • 2” thick ceramic fiber 4” x 10 1/2” punty rod doors with double gaskets
    • Rare earth magnets hold the punty rod door open or closed
    • Thermocouple with high-nickel stainless steel sheath for long life
    • Mandrel holder adjusts without tools
    • 1200°F maximum temperature
    • Dropped, recessed element grooves in the walls
    • Mar-proof rubber feet
    • 2-Year Limited Warranty (Refer to manufacturer's warranty)


      The massive Paragon F-500 kiln, with its towering door counter-weights and handsome black finish, is a workhorse that will raise your production. The F-500 simplifies annealing so you can immerse yourself in creating breathtaking ware.

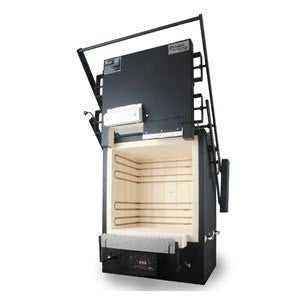

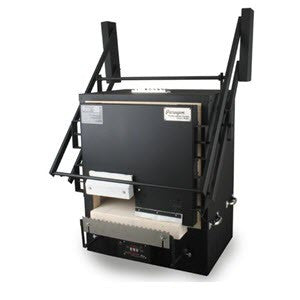

      Raise the counter-weight vertical-drop door to insert glass on a punty rod. Lower the door. The punty rod extends outside the firing chamber through a smaller punty rod door. The main door is balanced so it stays open where you stop it. Maintain the annealing temperature indefinitely with the Genesis Mini Touch Screen Controller.


      The punty rod doors retain the heat

      The main door includes two 4” x 10 1/2” punty rod doors. Two flexible gaskets under each door help to retain the heat. The punty rods can extend outside the kiln through the gap under the doors. This allows the doors to remain fully closed. The ceramic fiber punty rod doors are a full two inches thick to help retain heat. Rare-earth magnets hold the doors in the open and closed positions.


      Adjustable rod rest

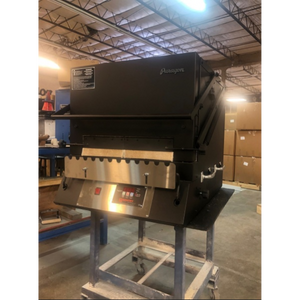

      You can adjust the rod rest, which is positioned in front of the punty rod doors, with wing bolts. Adjust it horizontally and vertically without tools. Or remove the rod rest altogether when you don’t need it. You can order the optional stand for the F-500, with or without casters.


      Durable 3” thick insulating firebricks; side elements

      The insulating firebricks, wrapped in heavy-gauge steel, soak up the heat for slow, efficient cooling. The firebricks are 3” thick, 20% thicker than the standard 2 1/2” bricks, throughout the top, walls, bottom, and door. The heating elements are protected in dropped, recessed wall grooves for trouble-free firing. Wires are fastened to the elements with heat-dissipating connectors refined and proven over many years in Paragon kilns. Elements are coiled from the finest high-temperature wire available. The F-500 has no roof elements.


      Door Safety Switch

      The safety door switch, which turns off the element when the door is raised. (The temperature controller will continue to operate when the safety switch turns off the elements.)


      Custom voltage

      We can manufacture your F-500 kiln for almost any electrical system in the world. Let us know of your special voltage requirements.


      Heavy duty components

      Costly heavy-gauge nickel-plated copper wiring is covered with high temperature glass-braided insulation. The thermocouple, which senses temperature inside the kiln, is protected with a high-nickel stainless steel sheath for long life. The built-in base stays cool even during extended hold times.


      Solid State Relays

      The F500 has solid-state relays that are mounted to aluminum heat sinks. SSR's last far longer than standard mechanical relays and offer better temperature control during holds. SSR's also have no moving parts to wear out. You will also notice is that SSR's are silent. The only sound you will hear just the reassuring hum of the heating elements.


      Interested in Making Your Own Metal Parts and Pieces?

      What is Lost Wax Casting? It is the process of making or carving a shape in wax, then making a mold of the wax shape, and then casting that shape into metal from the mold. The mold is a negative image of the wax. The wax is melted out of the mold through hollow channels called sprues. Lost wax burnout is the process of preparing a casting mold for the melted metal that will be poured into it.

      Stainless Steel Wax Trays

      If you want to do Lost Wax Casting, you'll need a stainless steel wax tray. Here's the one you'll need for this kiln; a Stainless Steel Wax Tray and Grate, 17″ X 17.″ This Stainless Steel Wax Tray and Grate system will fit well in your kiln and allow you to do lots of wax burnout.

      Place your molds on the removable expanded metal top. The wax will drip from the molds into the tray underneath. Then remove the wax tray before the kiln gets hotter than 300°F / 148°C. Note: Burning wax inside a kiln can damage the firebricks. Check out this 17" x 17" Stainless Steel Wax Tray and Grate out to help you in your projects. Here's the link.

      Want to learn more about Lost Wax Casting? Here is a link to a cool internet guide we found that you can use as a reference: Lost Wax Casting Tutorial and Guide
