Kilns Under $7500 Ship Free To The US 48!

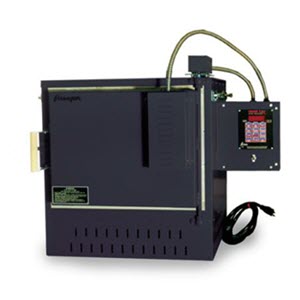

Paragon Kiln - GL18ADTSD

$3,78957 $4,21063

The GL-18ADTSD digital kiln fires from the top, three sides, and door for unsurpassed heat distribution. Use the kiln’s side heat for taller projects such as drop-out vases sagged through a ring mold. Side elements, seated in dropped, recessed brick grooves, span the three walls.

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Product Specifications
Model: Paragon  GL18ADTSD
Dimensions Inside: 18" (width) x 18" (depth) x 13" (height)
Dimensions Outside: 34.5" (width) x 28" (depth) x 25.5" (height)
Shelf Size: 17" X 17" X 5/8” - NOT INCLUDED
Elements: Top, Side, and Door Elements
Max Temp: Fires to 1700° F
Voltage: 240 volts
Amperage: 20 amps
Watts: 7200 watts

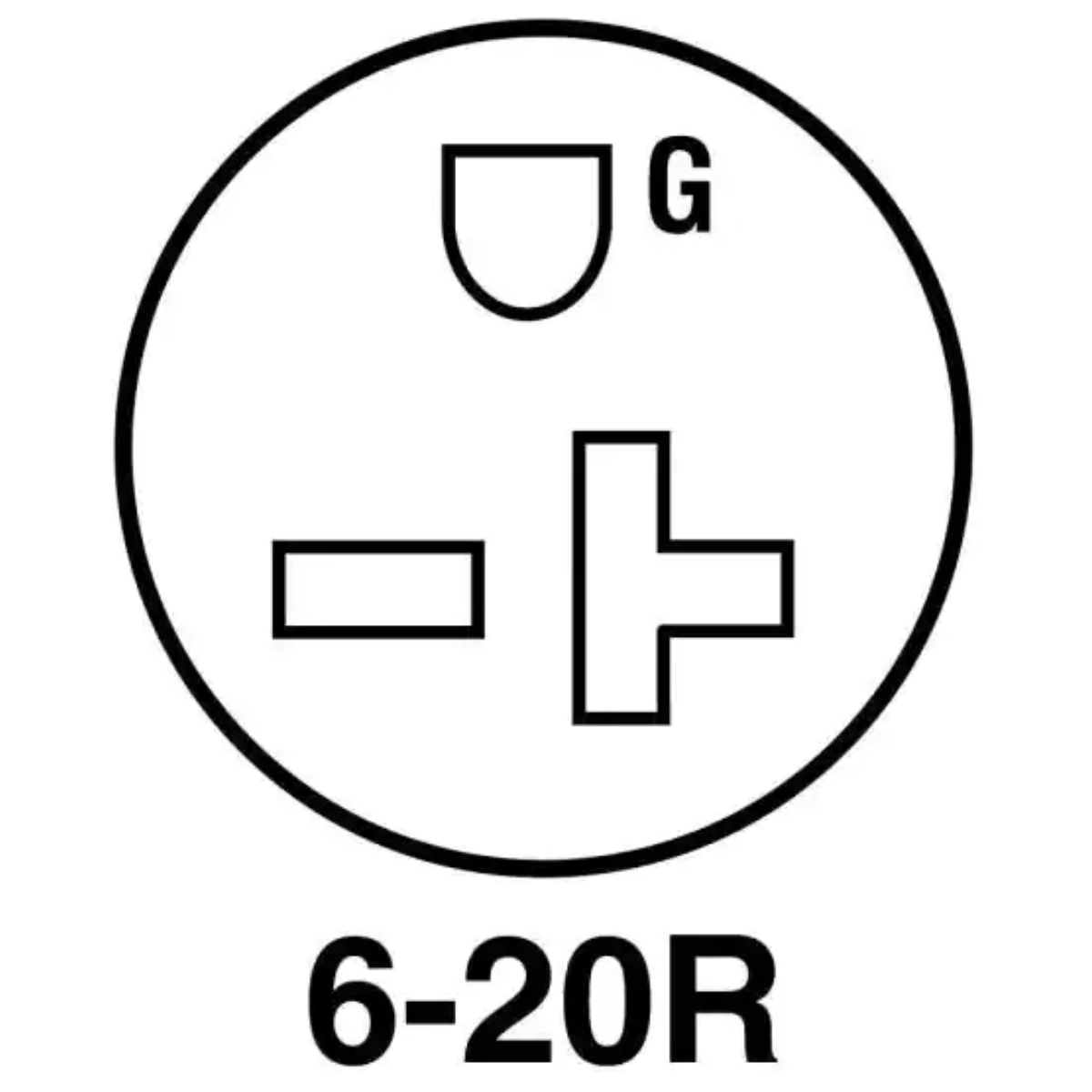

Receptacle: 6-20R
Shipping Weight: 270 lbs. (Freight)

Product Description

The GL-18ADTSD digital kiln fires from the top, three sides, and door for unsurpassed heat distribution. Use the kiln’s side heat for taller projects such as drop-out vases sagged through a ring mold. Side elements, seated in dropped, recessed brick grooves, span the three walls.

The kiln is available, however, with advanced power ratio technology at no extra charge. Pioneered by Paragon, power ratio balances the heat between top and side/door elements. Program the digital controller to balance the heat between the top and sides in increments of 10%. (i.e., 100% top - 0% sides, 50% top - 50% sides, 80% top – 20% sides, etc.) Set the heat balance for any combination desired between the top and sides so that the total heat output equals 100%. The power ratio GL-18ADTSD requires more amperage than the standard model. If you want the power ratio option, be sure to specify it at the time you place your order.

What's Included
  • Sentinel SmartTouch Controller
  • Door, Top and Side Elements
  • On/Off Safety Switch
  • Mercury Relays
  • Door / Lid Safety Switch
  • Built-in Stand
  • Instruction Manual
  • 2-year Limited Warranty (Refer to manufacturer's warranty)

Key Information

Mercury Relays

The mercury relay is quiet and reliable. The life of a mercury relay has been measured in millions of on/off cycles and outlast the standard mechanical relays.

The GL-18ADTSD digital kiln is 13” high inside with room to bend glass for curved windows or cabinet doors and to repair lampshades. Make glass-fused platters. Crack the door to rake or emboss designs in the glass. Make small-to-medium sized castings and pâte de verre.

Thermocouple with “special limit” wire

The thermocouple senses temperature inside the kiln. It is the small rod that extends into the firing chamber. The ¼” wide Type-K, 14-gauge, exposed-tip thermocouple is made with special-limit wire for superior accuracy. The exposed tip gives the controller a fast response time for even temperatures during holds. The thermocouple is made in America to our exacting standards.

Engineered for Reliability

Paragon’s GL-series are made for years of rigorous firing, as artists all over America can attest. The insulating firebrick, wrapped in heavy-gauge steel, soak up the heat for slow, efficient cooling. A double heat shield and the air gap between the kiln and ventilated switch box help keep electrical components cool for long, trouble-free service. Costly heavy-gauge nickel-plated copper wiring is covered with high temperature glass-braided insulation. The thermocouple, which senses temperature inside the kiln, is protected with a high-nickel stainless steel sheath for long life.

The GL-series lid elements are mounted in pinless grooves. The GL-series lid elements use an element groove that eliminates element pins. The element coils are wider than the groove opening, so the elements stay in place without pins. The elements in the walls are seated and protected in dropped, recessed grooves.

The spring-pressure latch and a ½" recess around the edge of the firebrick door keep the door tightly closed. The door remains rock-steady on a heavy hinge shaft. Four hand lifts aid moving. The base is open in the back and slotted to dissipate heat.

Paragon Kiln - GL18ADTSD - Heat Treat Now
Paragon Kilns

Paragon Kiln - GL18ADTSD

From $3,73574 $4,15082
Model: Paragon  GL18ADTSD
Dimensions Inside: 18" (width) x 18" (depth) x 13" (height)
Dimensions Outside: 34.5" (width) x 28" (depth) x 25.5" (height)
Shelf Size: 17" X 17" X 5/8” - NOT INCLUDED
Elements: Top, Side, and Door Elements
Max Temp: Fires to 1700° F
Voltage: 240 volts
Amperage: 20 amps
Watts: 7200 watts
Receptacle: 6-20R
Shipping Weight: 270 lbs. (Freight)
