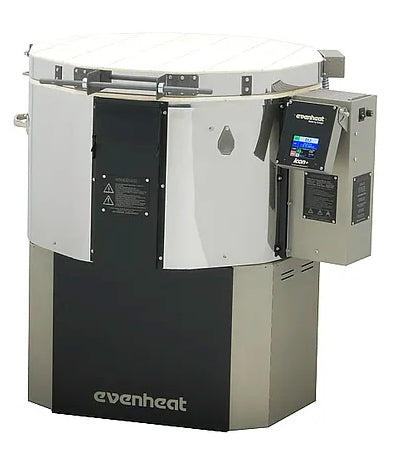

Evenheat Kiln - GTS 23

$3,04000 $3,80000

The Evenheat GTS 23 has been on the glass firing line since the beginning. Its large size and ample power make it a favorite for personal and professional studios. Small pieces can be loaded in volume while relatively large pieces can be created.

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Product Specifications
Model: Evenheat GTS 23
Inside Dim: 23.5" x 13" (depth)
Outside Dim: 28.5" (length) x 38.5" (width) x 26.5" (height)
Shelf Size: 21" Round Shelf - NOT INCLUDED
Max Temp: 1800
Voltage: 240 volts
Amperage: 30 amps
Watts: 7200 watts

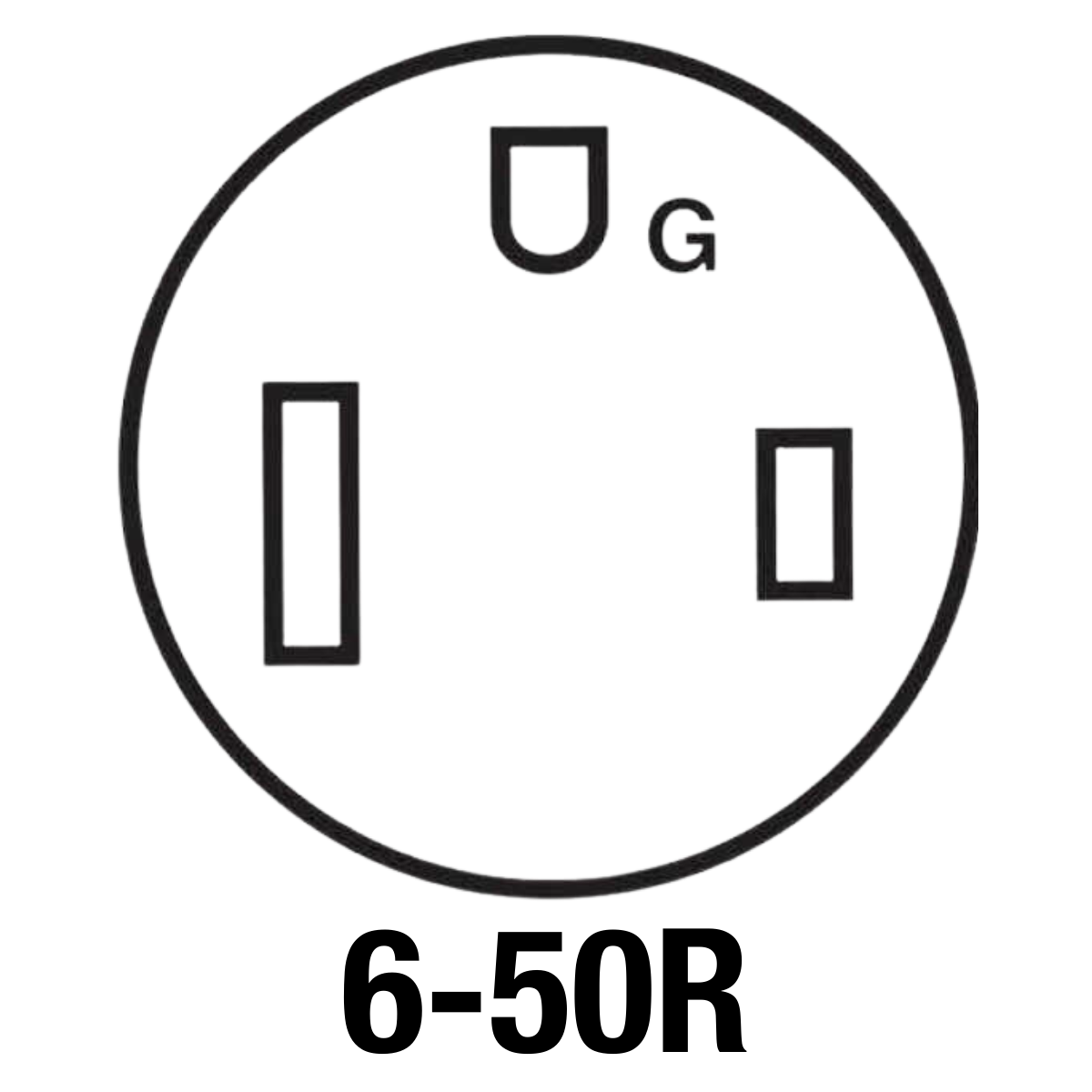

Receptacle: 6-50R
Ship Wt: 140# (freight)

Product Description

The Evenheat GTS 23 has been on the glass firing line since the beginning. Its large size and ample power make it a favorite for personal and professional studios. Small pieces can be loaded in volume while relatively large pieces can be created.

What's Included
  • FREE SHIPPING in the contiguous US!
  • Icon+/Genesis Touchscreen Controller
  • Swing View Adjustable Control (RM and Tap Controllers)
  • Wide Lid Handle
  • Full Stainless Jacket
  • Corner Mounting Technique
  • Properly Sized Stands
  • Responsive Thermocouples
  • Top and Side Fire Configuration
  • Excellent Temperature Distribution
  • Solid-State Relays Standard - NEW!
  • 2-Year Limited Warranty (The manufacturer's warranty as well as the optional add-on Extended Warranty Protection Plan do not cover a service contractor to provide in-home kiln repairs.)

Key Information

Options:

Multiple Control Options

The GTS 23 is available in a variety of controls including the Icon, Icon+, Tap II and Rampmaster 3. At
Evenheat we take the best control platforms on the market and make them even better by adding Special Limits thermocouples for precise temperature sensing and non-metallic faceplates for stellar Wi-Fi reception for on-line Apps. Visit our Controls tab to learn more about our controls and why they represent the very best that you can get.

Looking to replace a worn-out or broken shelf? Enhance your firing experience with our custom shelf kits tailored for the Evenheat Kiln - GTS 23 kiln - Order 21" Round Full Shelf Kit, 21" Round Half Shelf Kit, or 21" Round Half Shelf Kit (Junior Version) now!

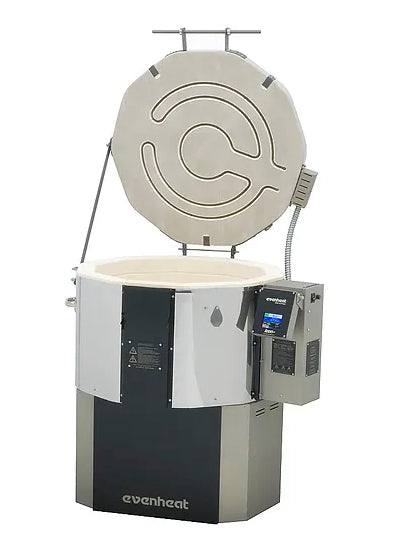

Top Load

The GTS 23 is a top loading design and offers a chamber 23.5" diameter 13.5" deep.

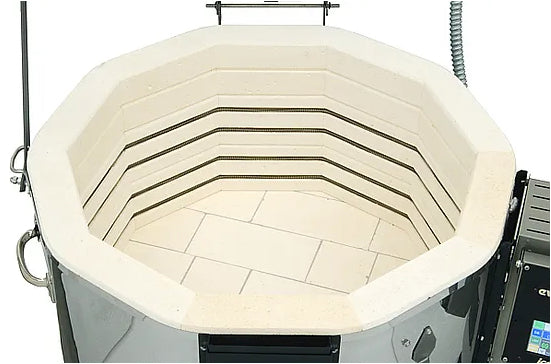

Full Firebrick Design

The GTS 23 is constructed completely of firebrick. Firebrick is desired in a glass kiln as it stores heat in the beginning of the firing which acts to smooth out temperature swings. It then releases heat slowly at the completion of the firing resulting in very calm annealing, especially over an annealing range. It's just beautiful. As with any glass kiln, you want a portion of firebrick in the mix.

Swing View Equipped

GTS 23 temperature controls are fitted to our Swing View Adjustable Enclosure. The swing view is a pivoting, swing-up enclosure that allows you to
rotate the control to a comfortable viewing and programming angle. Once you're done, lay it back down to see it from across your studio. It's
that simple. The swing view pairs well with touchscreen controls like the TAP II, Icon+ and Icon as viewing angle can be perfectly aligned. You'll love it.

Relay Access Port

The GTS 23 incorporates our Relay Access Port for simple, no-panel-off relay replacement. Simply remove the access plate to gain access to the mechanical relays. There's no need to remove the control panel and dig into the internal wiring. It's absolutely simple and effective and all it takes is a screwdriver!

It's a given that mechanical relays will fail at some point. This relay access port really comes in handy when they do.
