Olympic Kiln - 1823FLE

$2,36800 $2,96000

The Olympic 1823FLE's front-loading feature allows easy access while the kiln is hot and a vent hole in the top of the firing chamber allows for the escape of wax and other vapors when the kiln is being used for wax burnout.

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Product Specifications
Model:

Olympic 1823FLE
Inside Dim: 17.5" (width) x 12 (height) x 22.5" (depth)
Outside Dim: 30.5" (width) x 27" (depth) x 22.5" (height)
Shelf Size: 16" x 20” Rectangular Shelf - NOT INCLUDED
Max Temp: Fires to Cone 8 - 2300°F
Voltage: 208 / 240 volts
Amperage: 30 / 26 amps (Standard Single Phase)
Watts: 6240 watts
Receptacle: 6-50
Ship Wt: 250# (Freight)

Product Description

The Olympic 1823FLE's front-loading feature allows easy access while the kiln is hot and a vent hole in the top of the firing chamber allows for the escape of wax and other vapors when the kiln is being used for wax burnout.

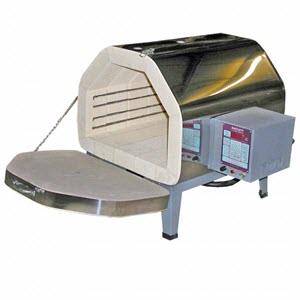

Guillotine lift or bottom-hinged door provides easy access for placing pieces in or out of the kiln.

What's Included
  • 3-Key Digital Bartlett Controller
  • Peephole Plugs
  • Pilot Light
  • Attached Stand
  • Stainless Steel Jacket
  • Mechanical Relays
  • Instruction Manual
  • Two-year warranty (Refer to manufacturer's warranty)

Key Information

Why Upgrade from Mechanical Relays to Solid-State Relays?

Mechanical Relays, which come standard on most kilns have internal moving parts which over time wear out and need to be replaced.  Kiln manufacturers recommend you replace your mechanical relays approximately every 2 years.  Solid-state relays have no moving parts and last far longer than standard mechanical relays and offer far better temperature control during hold times.  Since solid-state relays also have no moving parts to wear out, they NEVER need to be replaced.  You will notice that solid-state relays are silent.  The only sound you will hear is just the reassuring hum of the heating elements.  So, this factory upgrade saves you potential down time from having to wait for new relays to arrive, potential over-fires from relays sticking in the closed position, potential aggravation from having to learn how to remove and replace the mechanical relays yourself.  We think this upgrade is well worth the cost and will save you time and aggravation over the life of your kiln.

Check out the Olympic Kilns Electrical Parts Kits... never experience downtime again because you didn’t have a part on hand!
