    Olympic Kiln - 1827HE

    $2,940.00 USD
    $2,322.60 USD


    Ask a question


    • American Express
    • Diners Club
    • Discover
    • Mastercard
    • PayPal
    • Shop Pay
    • Venmo
    • Visa

    Product description

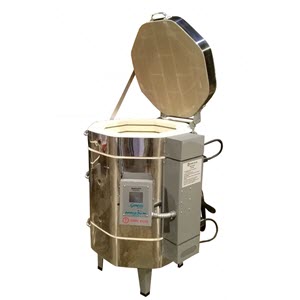

    Olympic 1827HE

    Inside Dim: 17.5" (width) x 27" (depth)
    Outside Dim: 31.5" (width) x 41" (height)
    Shelf Size: 15.5 Octagon Shelf - NOT INCLUDED
    Max Temp: Fires to Cone 10 - 2350°F
    Voltage: 240 volts
    Amperage: 31 amps (Single Phase) / 21 amps (3 Phase)
    Watts:  7560 watts

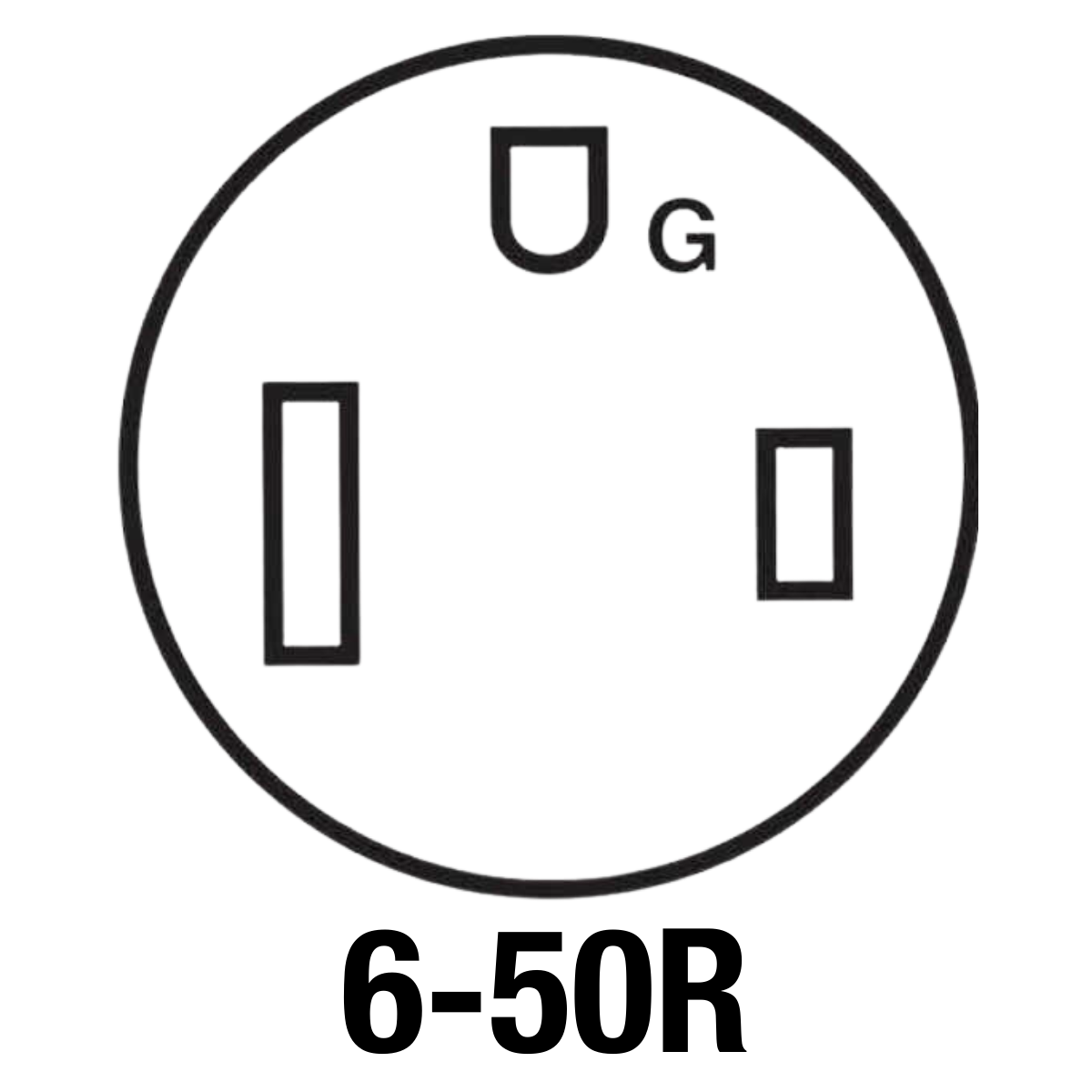

    Receptacle: 6-50 (Single Phase) / Direct Wired (3 Phase)
    Ship Wt: 280# (Freight)



    • 3k-CF Controller
    • Mechanical Relays
    • Instruction Manual
    • One-year Limited Kiln Warranty (Refer to manufacturer's warranty)

    Stackable electric models are built with Olympic’s proven electrical box design which has heat shields with top and bottom perforations to keep the electrical components cool, and balanced heating elements insure even heating of the firing chamber under all firing conditions.

    The Olympic 1827HE kilns come equipped with pilot light, metal stand, stainless steel jacket, and Bartlett 3K-CF electronic controller.  Data is entered by scrolling through the up and down buttons for the desired cone fire or ramp/hold programming.


    Should I Upgrade This to A Dual Media Kiln?

    Dual Media kilns are designed for the individual or business that works with multiple media. The dual design for reaching high firing temperatures for stoneware, pottery, ceramics, and the lid element for fusing glass provides the versatility needed. You can turn the lid element on and off when you need it saving your element's life and electricity. Oval dual media kilns are built with a 2" blank brick row in the first section of the kiln to protect the elements when loading and unloading the kiln.  All Dual Media models high fire to 2350°F and have a lid element to fuse glass.

    Why Upgrade from Mechanical Relays to Solid-State Relays?

    Mechanical Relays, which come standard on most kilns have internal moving parts which over time wear out and need to be replaced.  Kiln manufacturers recommend you replace your mechanical relays approximately every 2 years.  Solid-state relays have no moving parts and last far longer than standard mechanical relays and offer far better temperature control during hold times.  Since solid-state relays also have no moving parts to wear out, they NEVER need to be replaced.  You will notice that solid-state relays are silent.  The only sound you will hear is just the reassuring hum of the heating elements.  So, this factory upgrade saves you potential down time from having to wait for new relays to arrive, potential over-fires from relays sticking in the closed position, potential aggravation from having to learn how to remove and replace the mechanical relays yourself.  We think this upgrade is well worth the cost and will save you time and aggravation over the life of your kiln.

    Check out the Olympic Kilns Electrical Parts Kits... never experience downtime again because you didn’t have a part on hand!
