    Product description

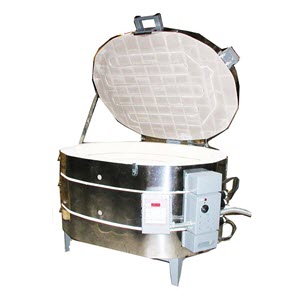

    Olympic DM3023HE

    Inside Dim: 42" (width) x 30" (depth) x 24.5 (height)
    Outside Dim: 55" (width) x 53" (depth) x 44.5" (height)

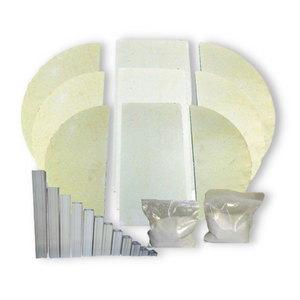

    Shelf Size: 26" x 39" Shelf - NOT INCLUDED
    Max Temp: Fires to Cone 10 - 2350°F
    Voltage: 240 volts
    Amperage: 78 (Single Phase) / 52 (3 Phase)
    Watts: 18,720 watts
    Receptacle: Direct Wired
    Ship Wt: 545# (Freight)


    • 3K-CF Controller
    • Lid List Assist
    • Pilot Light
    • Metal Stand
    • Mechanical Relays
    • Instruction Manual
    • One-year Limited Kiln Warranty (Refer to manufacturer's warranty)

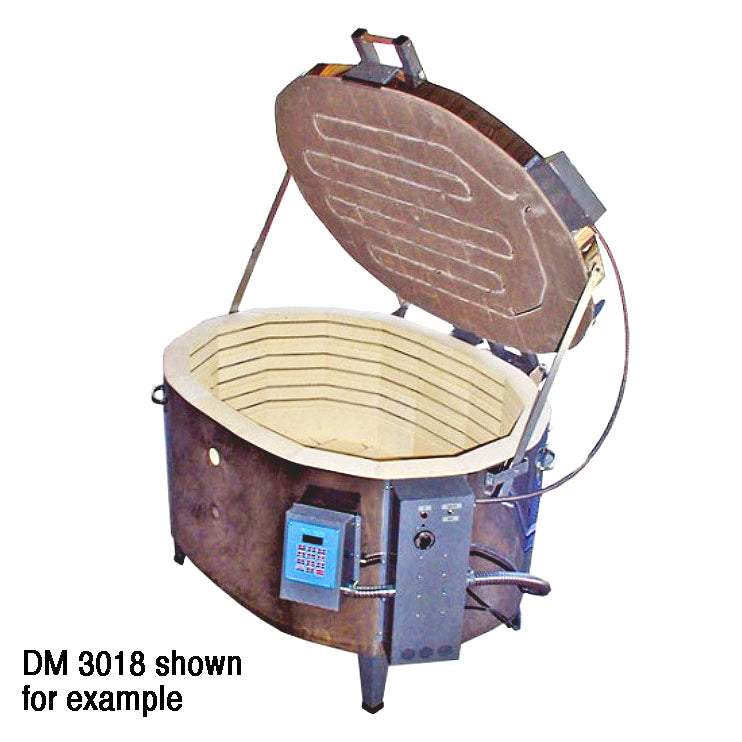

    Olympic DM kilns are built to reach high firing temperatures up to 2350°F for stone ware, pottery, ceramics while the lid element provides the versatility for fusing glass.

    All Olympic Oval Dual Media kilns are built with a 2" blank brick row in the first section of the kiln to protect the elements when loading and unloading the kiln.

    Dual Media kilns are built with Olympic’s proven electrical box design which has heat shields with top and bottom perforations to keep the electrical components cool, and balanced heating elements insure even heating of the firing chamber under all firing conditions.

    Why Upgrade from Mechanical Relays to Solid-State Relays?

    Mechanical Relays, which come standard on most kilns have internal moving parts which over time wear out and need to be replaced.  Kiln manufacturers recommend you replace your mechanical relays approximately every 2 years.  Solid-state relays have no moving parts and last far longer than standard mechanical relays and offer far better temperature control during hold times.  Since solid-state relays also have no moving parts to wear out, they NEVER need to be replaced.  You will notice that solid-state relays are silent.  The only sound you will hear is just the reassuring hum of the heating elements.  So, this factory upgrade saves you potential down time from having to wait for new relays to arrive, potential over-fires from relays sticking in the closed position, potential aggravation from having to learn how to remove and replace the mechanical relays yourself.  We think this upgrade is well worth the cost and will save you time and aggravation over the life of your kiln.
