    Olympic Kiln - DPF24E

    $16,505.00 USD
    $14,524.40 USD

    Product Description

    The DPF24E high volume electric models come equipped with pilot light, welded heavy angle iron frame, stainless steel jacket, and 12 key digital Bartlett V6-CF controller for more ramp-hold user programs and multiple features including delay start, preheat, cone offset, skip step, and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and cone table for easy lookup of temperature and cone number equivalents. The DPF24E is equipped with its own breaker box for easy access, safety, and lockout. An Orton VentMaster is included in the shipment of the kiln.

    Additional options include 480-volt, Type S thermocouple, castors, car kiln, and custom design!

    Product Specifications

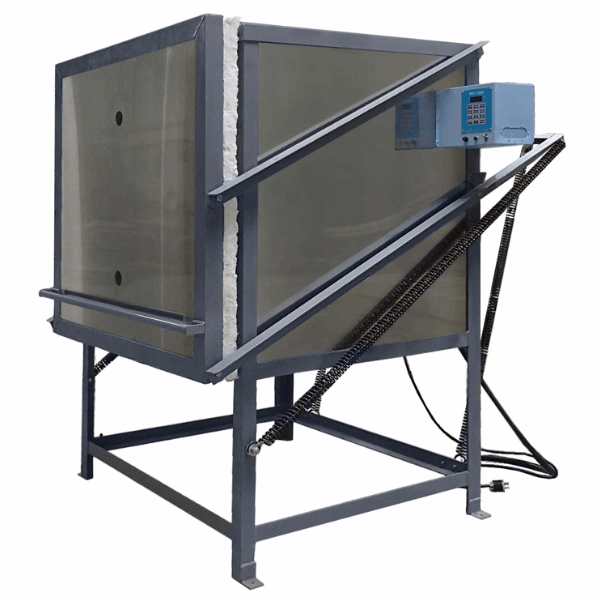

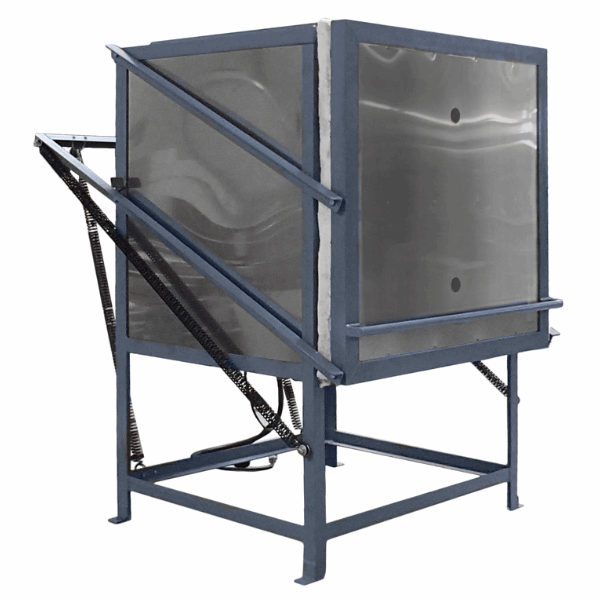

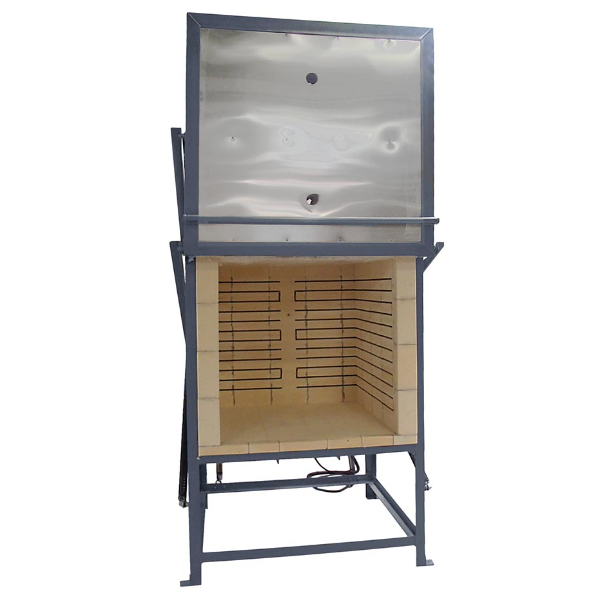

    Model: Olympic Kiln - DPF24E with Guillotine Door
    Dimensions Inside: 18" (width) x 18" (depth) x 24" (height) - 4.5 Cubic Feet
    Dimensions Outside: 40" (width) x 34" (depth) x 58" (height)
    Brick Thickness: 4.5” + 1" Fiber
    Max Temp: 2350°F
    Voltage: 240 volts
    Amperage: 36 amps (Single Phase) / 24 amps (3 Phase)
    Watts: 8640 watts

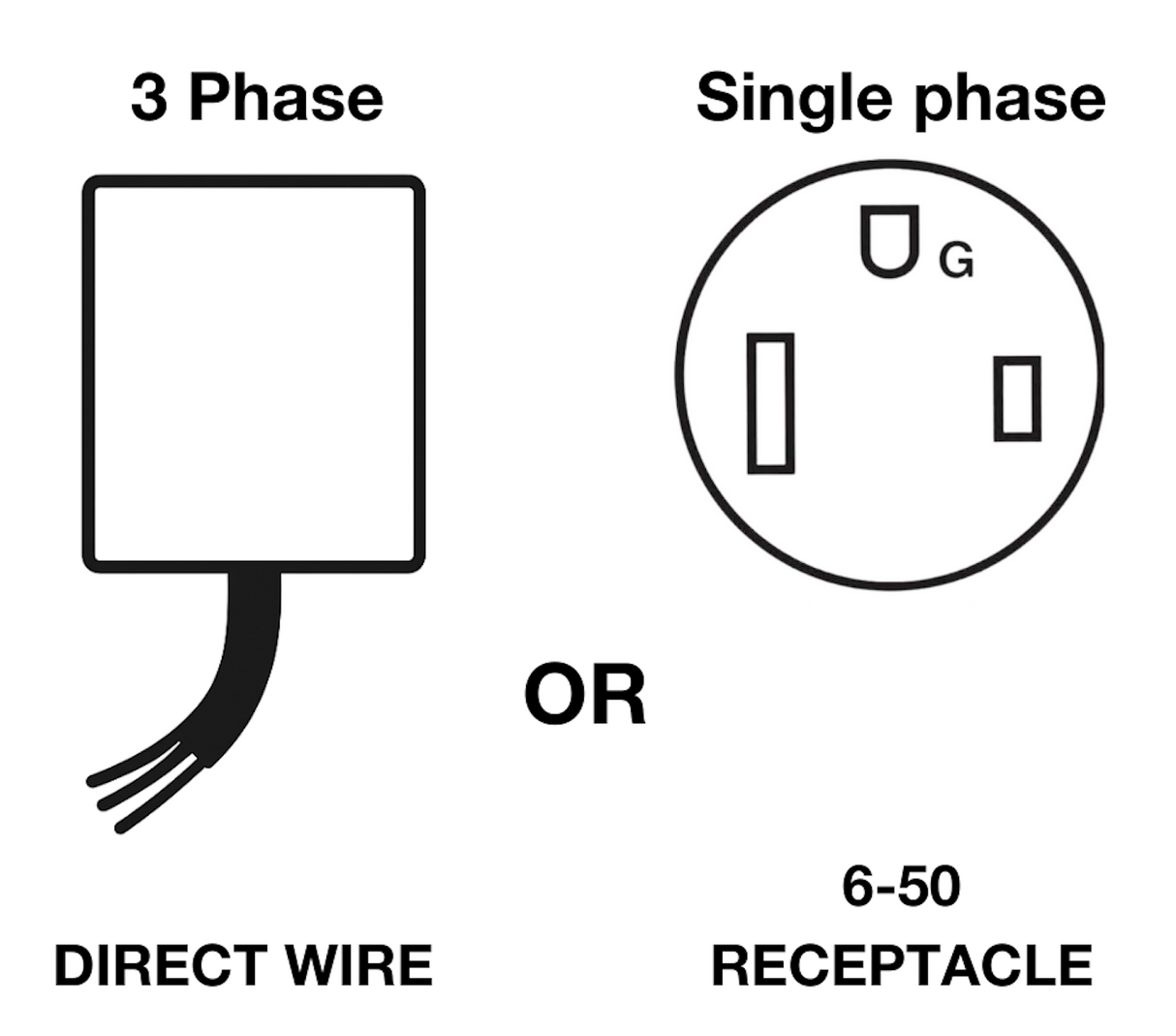

    Receptacle: NEMA 6-50 (Single Phase) / Direct Wired (3 Phase)
    Shipping Weight:  1550(Freight)

    What's Included

    • Bartlett V6-CF 12-key Controller
    • Peephole Plugs
    • Mechanical Relays
    • Instruction Manual
    • One-year limited warranty (Refer to manufacturer's warranty)
