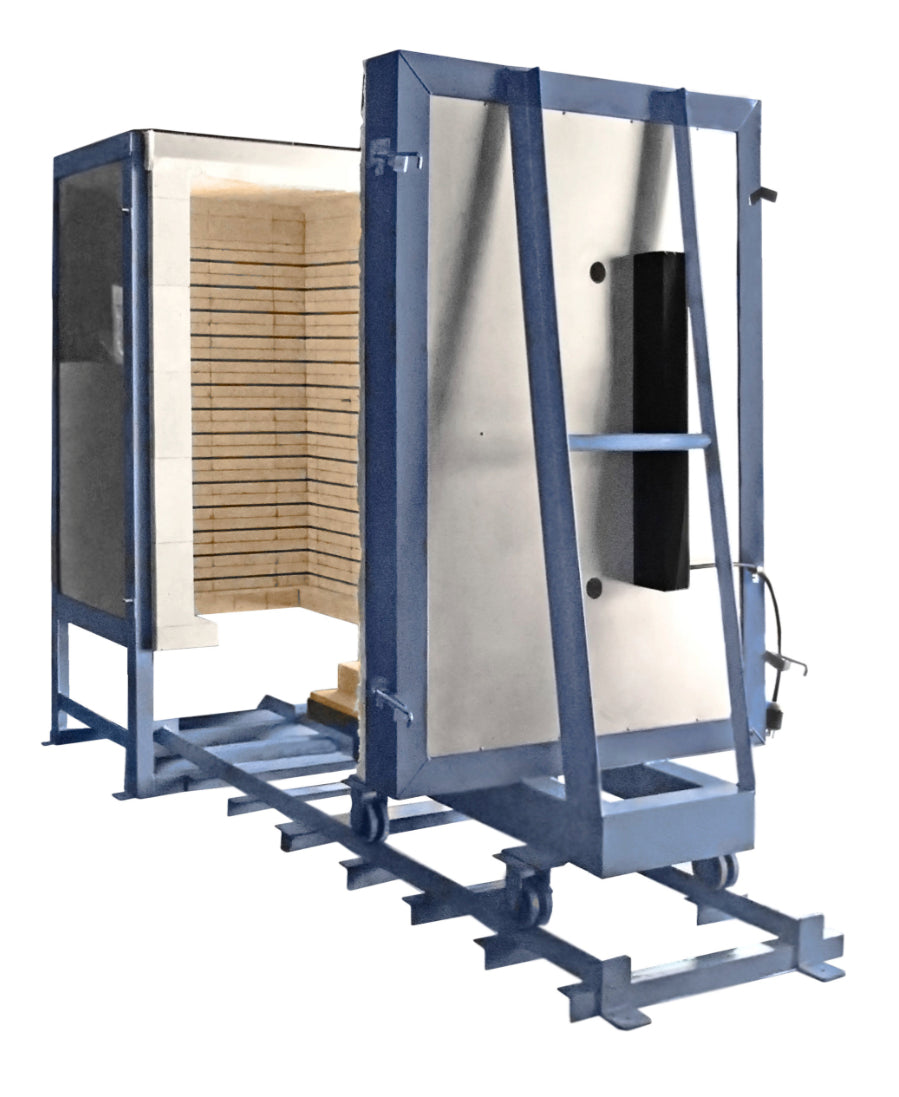

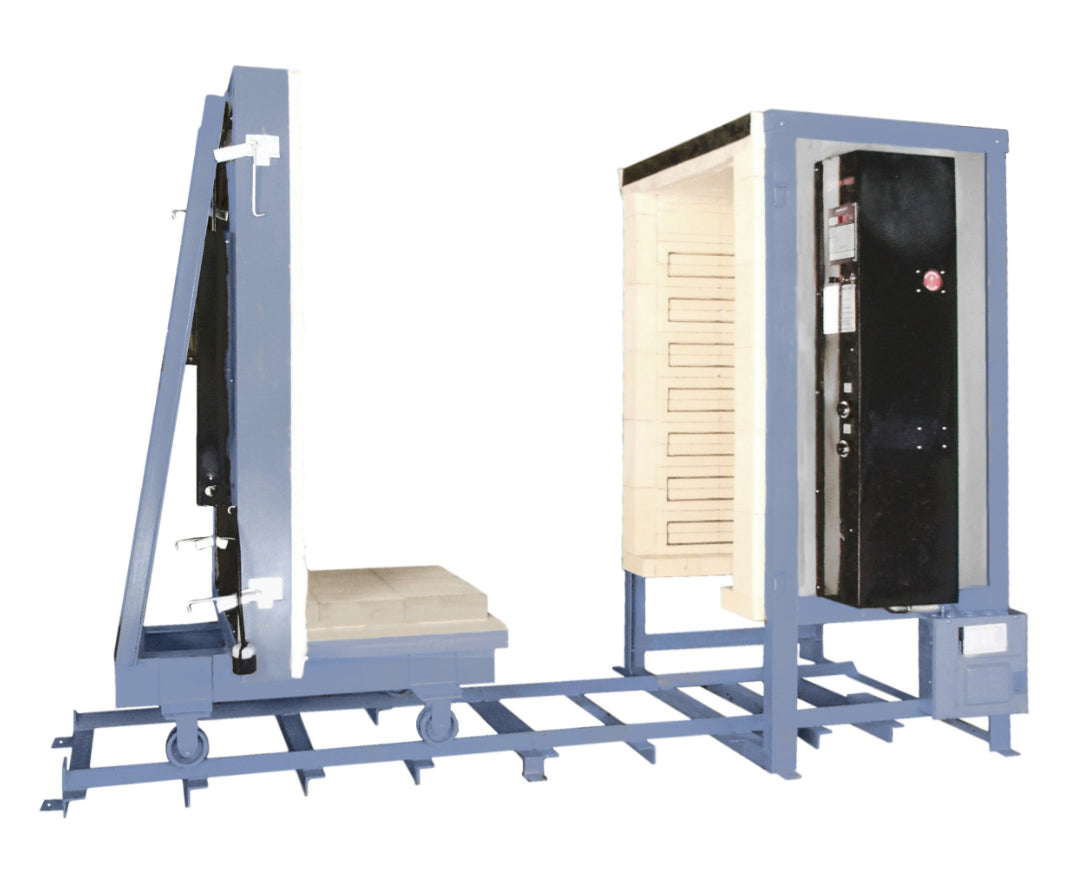

Olympic Kiln - FL10E Car Kiln

$11,00250 $12,22500

Front-loading car kiln models come equipped with a pilot light, a welded heavy-angle iron frame, stainless steel jacket, steel rail track, and the Olympic 12-key digital KilnStar controller. The controller provides cone fire and ramp-hold user programs with multiple features, including delay start, preheat, cone offset, skip step, and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and a cone table for easy lookup of temperature and cone number equivalents.

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Product Specifications
Model:

Olympic Kiln - FL10E Car Kiln
Inside Dim: 24" (width) x 24" (depth) x 30" (height) - 10 Cubic Feet
Outside Dim: 54" (width) x 114" (depth) x 65" (height) 6ft track
Shelf Size: 11" x 22" Rectangle Shelf - NOT INCLUDED
Brick Thickness: 4.5+1" Fiber
Max Temp: 2350°F / 1288°C
Voltage: 240 volts
Amperage: 56 amps (Single Phase) / 65 amps (3 Phase)
Watts: 13,440 watts
Receptacle: Direct Wired
Ship Wt:  2110# (Freight)

Product Description

Front-loading car kiln models come equipped with a pilot light, a welded heavy-angle iron frame, stainless steel jacket, steel rail track, and the Olympic 12-key digital KilnStar controller. The controller provides cone fire and ramp-hold user programs with multiple features, including delay start, preheat, cone offset, skip step, and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and a cone table for easy lookup of temperature and cone number equivalents.

The FL10E Car kiln is equipped with its own breaker box for easy access, safety, and lockout.

Additional options include a touchscreen Genesis controller, 480-volt, Type S thermocouple, vent, and much more! Solid-state relays are an option.

What's Included
  • Barlett 12-key Digital Controller (KilnStar)
  • Mercury Relays in all states except: CA, CT, IL, LA, ME, MA, MI, MN, NH, NJ, NY, NC, RI, VT, WA. (SSRs are recommended as the appropriate approved relay for an additional cost, or you may downgrade to mechanical relays which are available, but not recommended.)
  • Pilot Light
  • Welded Heavy Angle Iron Frame
  • Stainless Steel Jacket
  • Breaker Box
  • Instruction Manual
  • One-year limited warranty (Refer to manufacturer's warranty)

Key Information

Furniture Kits for Production Electric Kilns provide 4  layers of shelving,  assorted posts, and a 5-pound bag of kiln wash. Choose the standard furniture kit or build your own with shelves and posts in the quantities required.

The Bartlett KilnStar Controller gives you the freedom to create up to six, 8-step user programs. Other features include delay start, preheat, alarm, cone adjustments, thermocouple adjustments, °F or °C operation, 16 segment program, and skip step.

As an option, you can upgrade to the Genesis Controller, a modern and intuitive user platform with touch-screen technology for an effortless user interface. It can store up to 12 custom user programs with up to 32 segments per program and has the ability to make adjustments during a firing such as add segments, add temperature, and skip segments. Additionally, the easy-to-follow screen descriptions and graphical display of the firing process, allow the Genesis controller to make firing kilns extremely straightforward. Interested in learning more? Download and read this manual here and help you find out what more this controller can do for you.

The FL10E Car Kiln is also equipped with its own breaker box for easy access, safety, and lockout.

Why Upgrade from Mechanical Relays to Solid-State Relays?

Mechanical Relays, which come standard on most kilns have internal moving parts which over time wear out and need to be replaced.  Kiln manufacturers recommend you replace your mechanical relays approximately every 2 years.  Solid-state relays have no moving parts and last far longer than standard mechanical relays and offer far better temperature control during hold times.  Since solid-state relays also have no moving parts to wear out, they NEVER need to be replaced.  You will notice that solid-state relays are silent.  The only sound you will hear is just the reassuring hum of the heating elements.  So, this factory upgrade saves you potential downtime from having to wait for new relays to arrive, potential over-fires from relays sticking in the closed position, potential aggravation from having to learn how to remove and replace the mechanical relays yourself.  We think this upgrade is well worth the cost and will save you time and aggravation over the life of your kiln.

Get to know your kiln!

Read all about your kiln before you buy. Check out this Olympic Manual here and explore all about what this kiln has to offer.

Have more questions? Call or email, we're here to help!

Olympic

Olympic Kiln - FL10E Car Kiln

$11,00250 $12,22500
Model:

Olympic Kiln - FL10E Car Kiln
Inside Dim: 24" (width) x 24" (depth) x 30" (height) - 10 Cubic Feet
Outside Dim: 54" (width) x 114" (depth) x 65" (height) 6ft track
Shelf Size: 11" x 22" Rectangle Shelf - NOT INCLUDED
Brick Thickness: 4.5+1" Fiber
Max Temp: 2350°F / 1288°C
Voltage: 240 volts
Amperage: 56 amps (Single Phase) / 65 amps (3 Phase)
Watts: 13,440 watts
Receptacle: Direct Wired
Ship Wt:  2110# (Freight)
MODEL
 PHASE AMPS BREAKER SIZE NEMA PLUG
FL10E 240V
 1 56
 70
 DIRECT
FL10E 208V
 1 65
 80
 DIRECT
FL10E 240V
3
 37
 50
 DIRECT
FL10E 208V
 3 43
 60
 DIRECT
