Olympic Kiln - FL27E Car Kiln

$20,88450 $23,20500

Front-loading care kiln models come equipped with a pilot light, a welded heavy angle iron frame, stainless steel jacket, and heavy angle iron 6 ft. track.

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Product Specifications
Model:

Olympic Kiln - FL27E Car Kiln
Inside Dim: 36" (width) x 36" (depth) x 36" (height) - 27 Cubic Feet
Outside Dim: 66" (width) x 128" (depth) x 63" (height)
Shelf Size: 17"x 17" x 2 wide - NOT INCLUDED
Brick Thickness: 4.5” + 1" Fiber
Max Temp: 2350°F / 1288°C
Voltage: 240 volts
Amperage: 90 amps (Single Phase) / 104 amps (3 Phase)
Watts: 21,600 watts
Receptacle: Direct Wired
Ship Wt:  2,257# (Freight)

Product Description

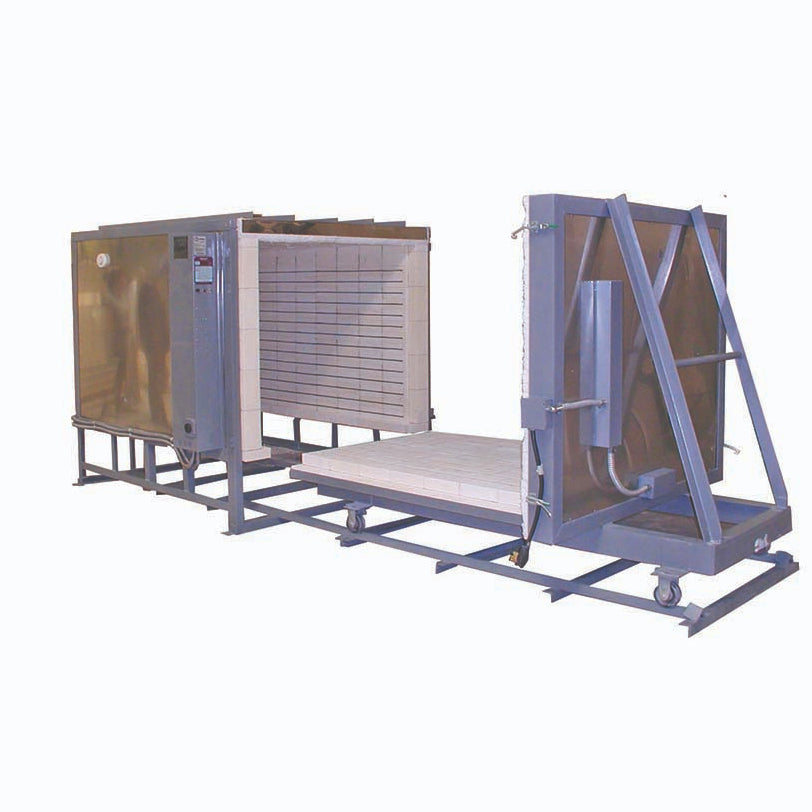

Front-loading care kiln models come equipped with a pilot light, a welded heavy angle iron frame, stainless steel jacket, and heavy angle iron 6 ft. track.

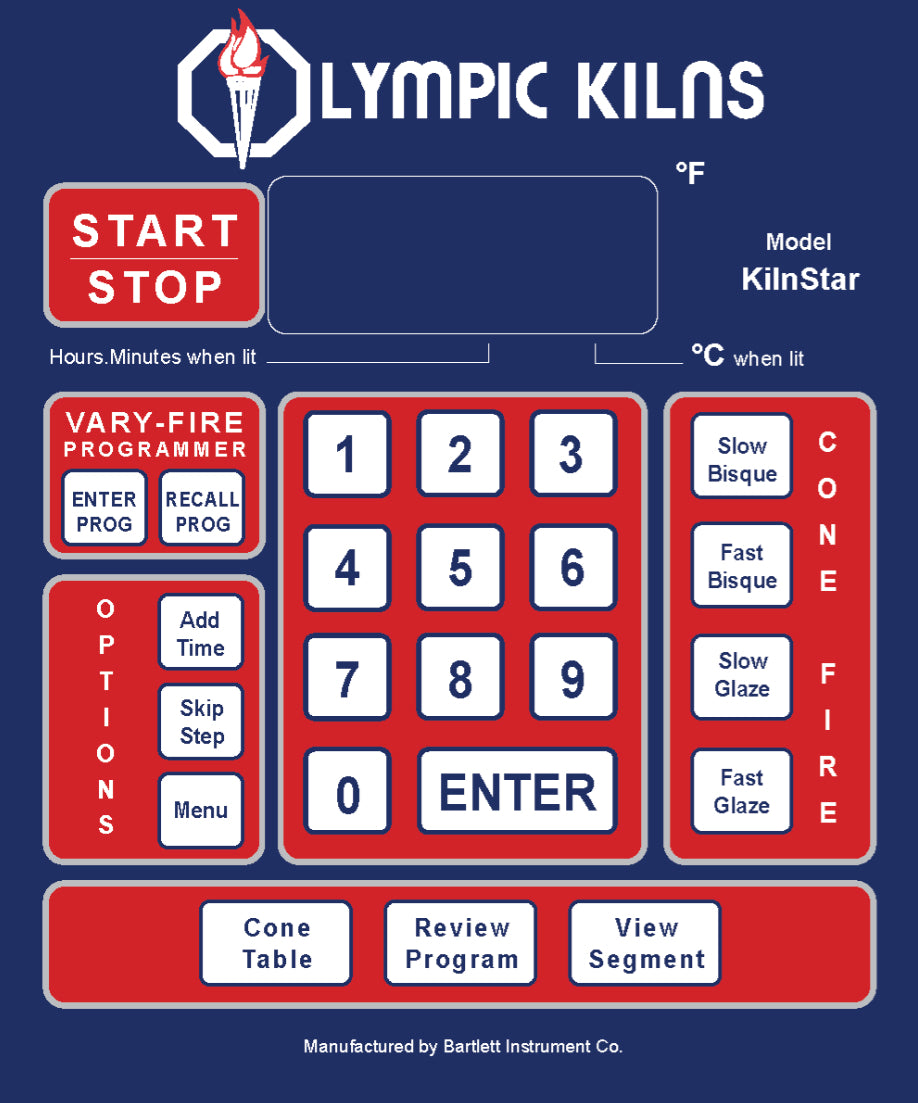

Bartlett Instruments 12-key digital KilnStar controller equips the kiln for more ramp-hold user programs and multiple features, including delay start, preheat, cone offset, skip step, and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and a cone table for easy lookup of temperature and cone number equivalents.

The FL27E Car kiln is equipped with its own breaker box for easy access, safety, and lockout.

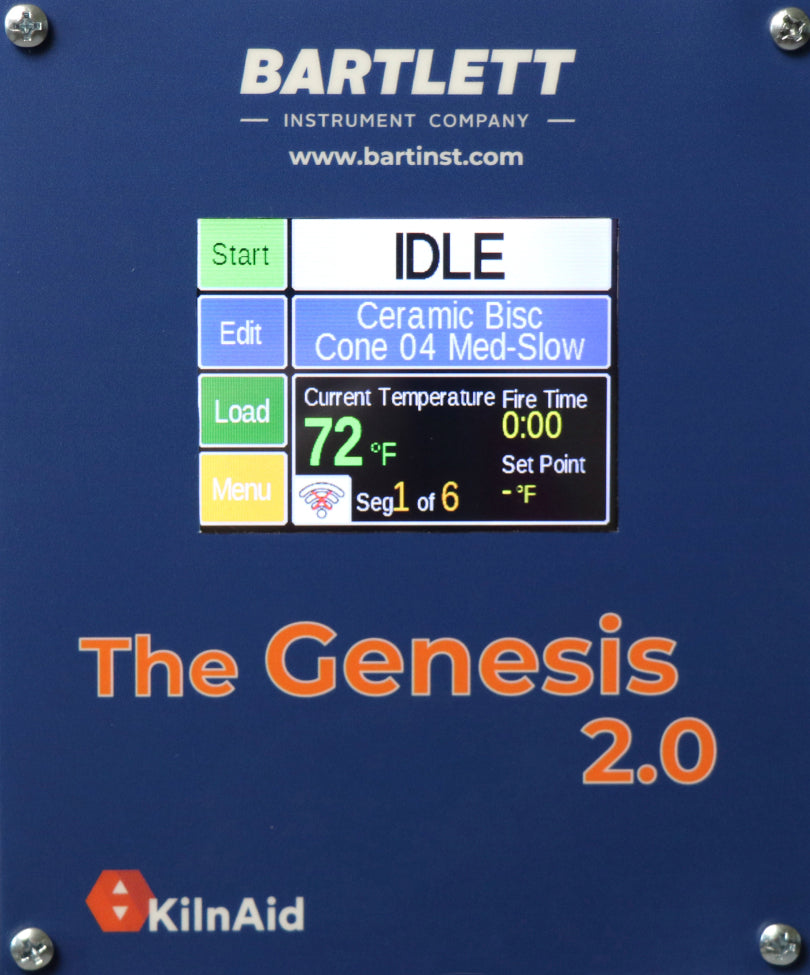

Options include upgrading to the Genesis touchscreen controller, 480-volt, Type S thermocouple, vent, and much more!  Solid-state relays are also an option.

What's Included
  • Barlett 12-key Digital Controller (KilnStar)
  • Mercury Relays in all states except: CA, CT, IL, LA, ME, MA, MI, MN, NH, NJ, NY, NC, RI, VT, WA. (SSRs are recommended as the appropriate approved relay for an additional cost, or you may downgrade to mechanical relays which are available, but not recommended.)
  • Pilot Light
  • Welded Heavy Angle Iron Frame
  • Stainless Steel Jacket
  • Breaker Box
  • Instruction Manual
  • One-year limited warranty (Refer to manufacturer's warranty)

Key Information

Why Upgrade from Mechanical Relays to Solid-State Relays?

Mechanical Relays, which come standard on most kilns have internal moving parts which over time wear out and need to be replaced.  Kiln manufacturers recommend you replace your mechanical relays approximately every 2 years.  Solid-state relays have no moving parts and last far longer than standard mechanical relays and offer far better temperature control during hold times.  Since solid-state relays also have no moving parts to wear out, they NEVER need to be replaced.  You will notice that solid-state relays are silent.  The only sound you will hear is just the reassuring hum of the heating elements.  So, this factory upgrade saves you potential downtime from having to wait for new relays to arrive, potential over-fires from relays sticking in the closed position, potential aggravation from having to learn how to remove and replace the mechanical relays yourself.  We think this upgrade is well worth the cost and will save you time and aggravation over the life of your kiln.

NOTE*** This kiln is delivered fully assembled. No assembly is required on site. This kiln will require private freight company delivery as it cannot be sent through regular (LTL- less than truckload) shipping as it will require the entire truck. The carrier is responsible for transporting the freight but not for unloading it. Large capacity kilns 20 cubic feet and larger require the customer to have a forklift that can move the kiln from the truck to the desired location. If you do not have access to a forklift, check the internet or yellow pages for small moving companies that can take the freight off the freight carrier and move the freight to the desired location. Give any prospective mover a physical description of the kiln and its weight, and inform them that it is designed to be picked up with a truck and a forklift only. It is your responsibility to move the freight from the truck to its place of use.

Have questions? Call or email, we're here to help!

Get to know your kiln!

Read all about your kiln before you buy. Check out this Olympic Manual here and explore all about what this kiln has to offer.

Have more questions? Call or email, we're here to help!

Olympic Kiln - FL27E Car Kiln - HEATTREATNOW
Olympic

Olympic Kiln - FL27E Car Kiln

$20,88450 $23,20500
Model:

Olympic Kiln - FL27E Car Kiln
Inside Dim: 36" (width) x 36" (depth) x 36" (height) - 27 Cubic Feet
Outside Dim: 66" (width) x 128" (depth) x 63" (height)
Shelf Size: 17"x 17" x 2 wide - NOT INCLUDED
Brick Thickness: 4.5” + 1" Fiber
Max Temp: 2350°F / 1288°C
Voltage: 240 volts
Amperage: 90 amps (Single Phase) / 104 amps (3 Phase)
Watts: 21,600 watts
Receptacle: Direct Wired
Ship Wt:  2,257# (Freight)
MODEL
 PHASE AMPS BREAKER SIZE NEMA PLUG
FL27E 240V
 1 90 120 DIRECT
FL27E 208V
 1 104
 120 DIRECT
FL27E 240V
3
 60 80
 DIRECT
FL27E 208V
 3 69
 80 DIRECT
