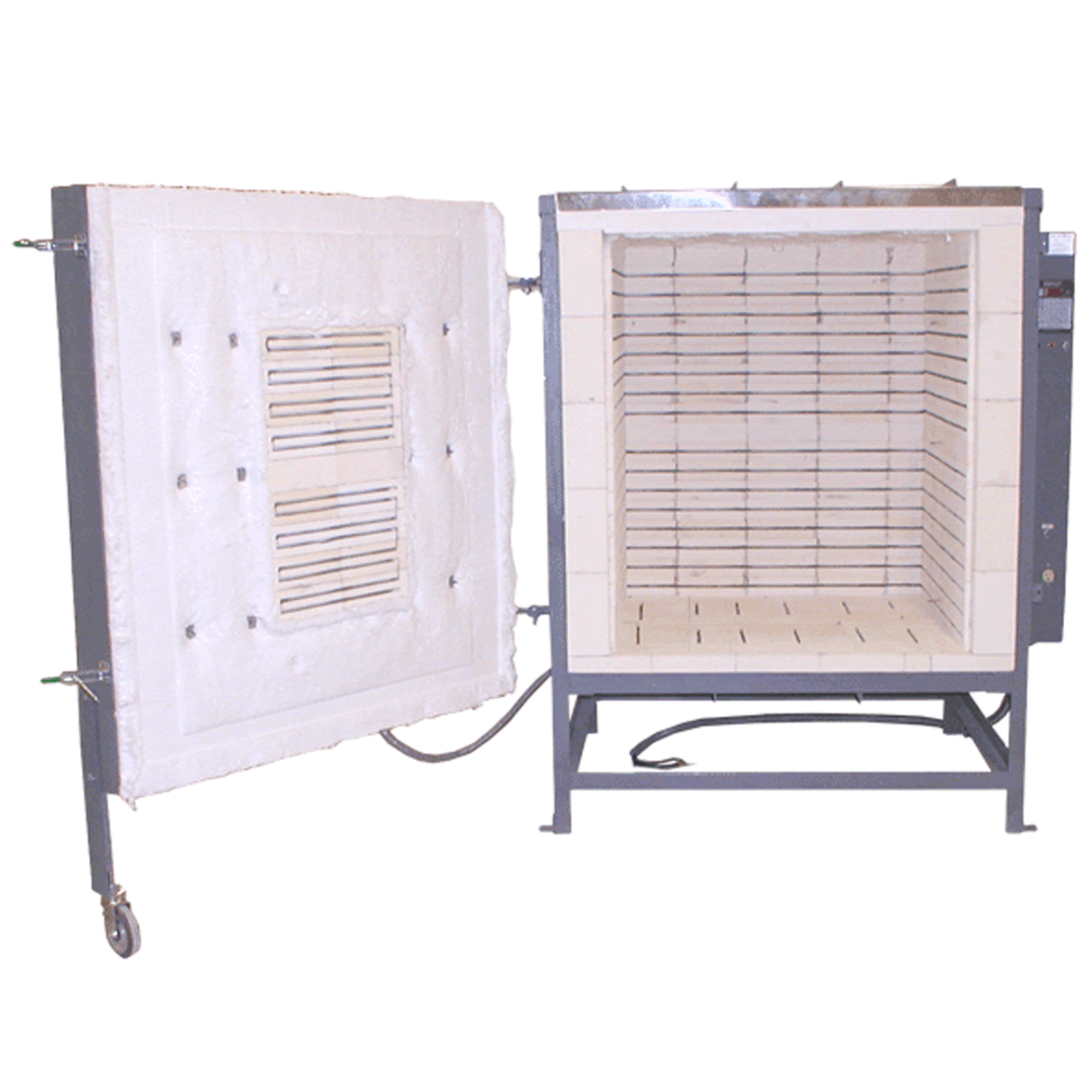

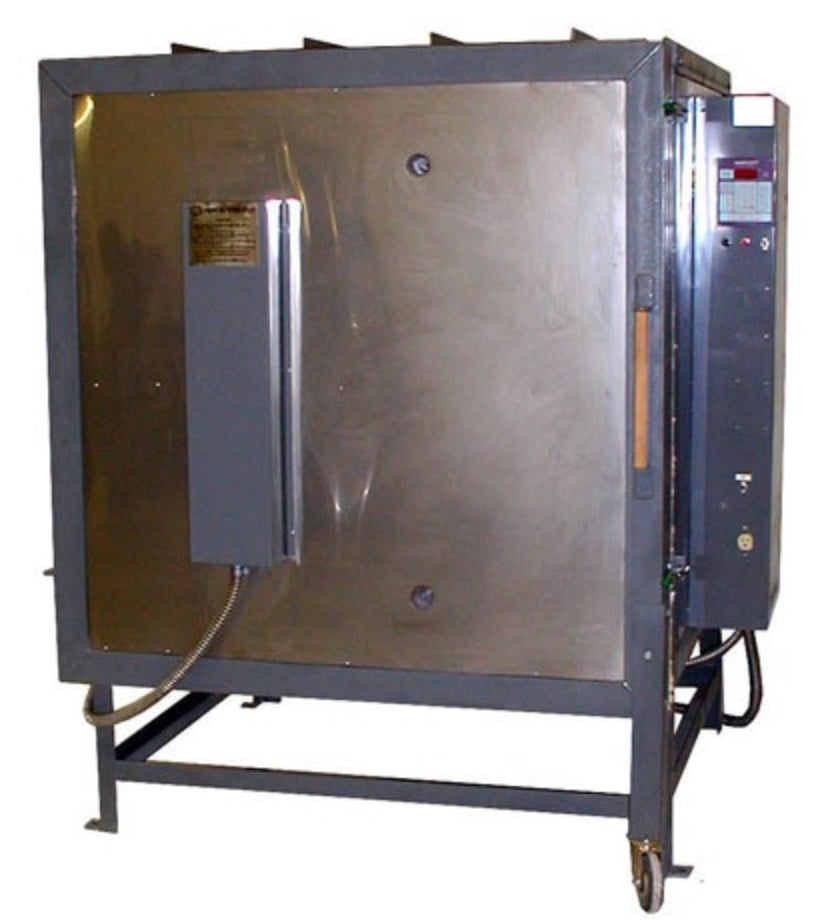

    Olympic Kiln - FL36E

    $22,485.00 USD
    $20,011.65 USD

    Product Description

    Front loading high volume electric models come equipped with pilot light, welded heavy angle iron frame, stainless steel jacket, and 12 key digital Bartlett V6-CF  controller for more ramp-hold user programs and multiple features including delay start, preheat, cone offset, skip step and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and cone table for easy look up of temperature and cone number equivalents. The FL36E is equipped with its own breaker box for easy access, safety and lockout.

    Product Specifications

    Model: Olympic Kiln - FL36E
    Dimensions Inside: 38" (width) x 38" (depth) x 45" (height) - 36 Cubic Feet
    Dimensions Outside: 62" (width) x 60" (depth) x 72" (height)
    Shelf Size:  18" Rectangle Shelf - NOT INCLUDED
    Brick Thickness: 4.5” + 1" Fiber
    Max Temp: 2350°F
    Voltage: 240 volts
    Amperage: 150 amps (Single Phase) / 100 amps (3 Phase)
    Watts: 36,000 watts
    Receptacle: Direct Wired
    Shipping Weight:  1,870(Freight)

    What's Included

    • Barlett 12-key Digital Controller
    • Mercury Relays in all states except: CA, CT, IL, LA, ME, MA, MI, MN, NH, NJ, NY, NC, RI, VT, WA. (SSRs are recommended as the appropriate approved relay for an additional cost, or you may downgrade to mechanical relays which are available, but not recommended.)
    • Pilot Light
    • Welded Heavy Angle Iron Frame
    • Stainless Steel Jacket
    • Breaker Box
    • Instruction Manual
    • One-year limited warranty (Refer to manufacturer's warranty)
