Kilns Under $7500 Ship Free To The US 48!

Olympic Kiln - FL4.5E

$6,01200 $6,68000



KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Product Specifications
Model:

Olympic Kiln - FL4.5E
Inside Dim: 18" (width) x 18" (depth) x 24" (height) - 4.5 Cubic Feet
Outside Dim: 40" (width) x 34" (depth) x 58" (height)
Brick Thickness: 4.5” + 1" Fiber
Max Temp: 2350°F
Voltage: 240 volts
Amperage: 36 amps (Single Phase) / 24 amps (3 Phase)
Watts: 8640 watts

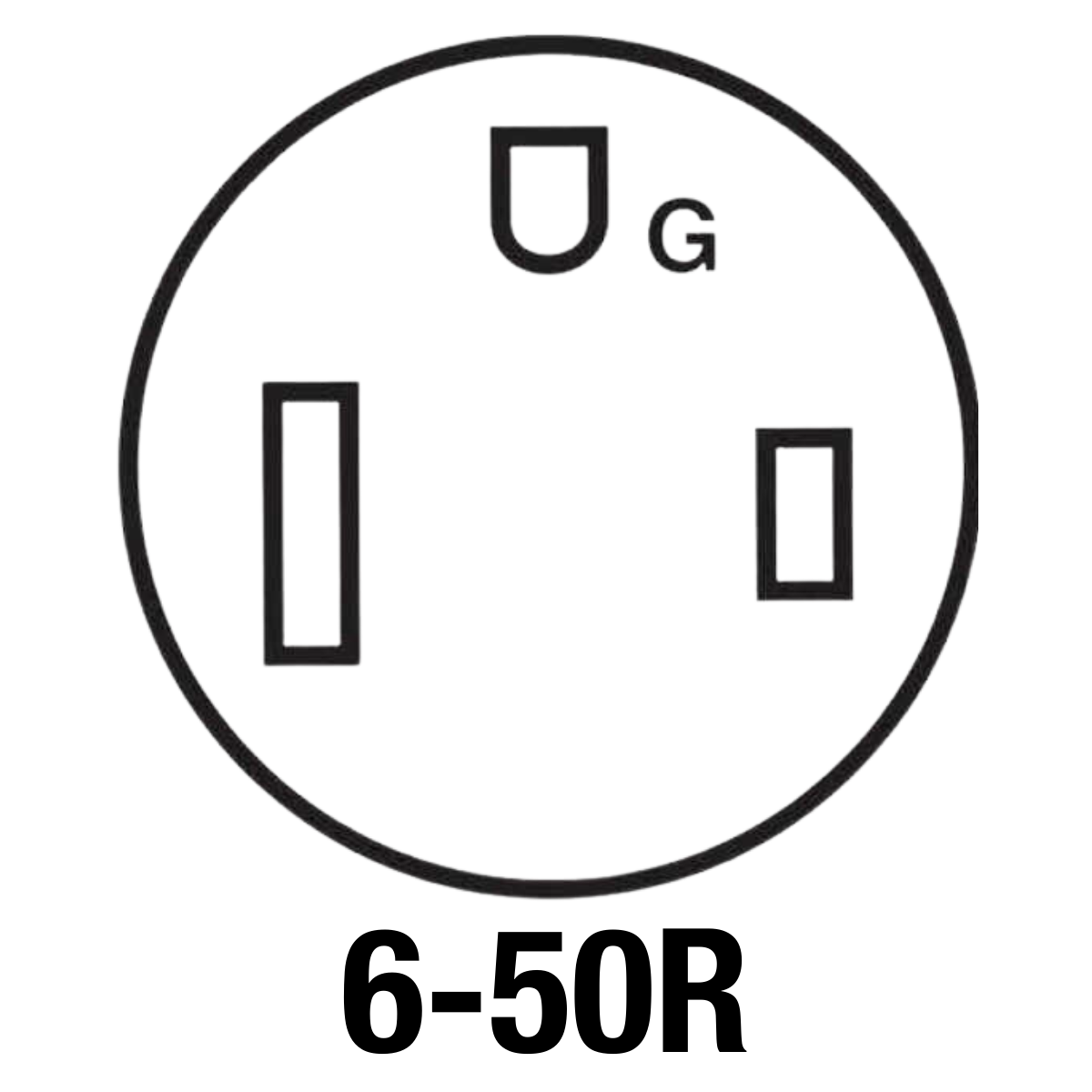

Receptacle: NEMA 6-50 (Single Phase) / Direct Wired (3 Phase)
Ship Wt:  868# (Freight)

Product Description

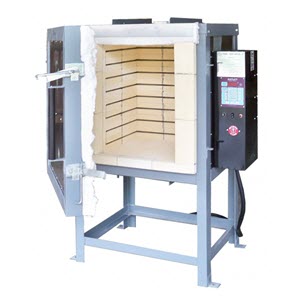

The Olympic FL4.5E electric kiln is a front-loading commercial model made for high fire loads. The FL4.5E commercial electric kiln is the smallest volume model of the FL line and fires to 2,350°F on 240 or 208 volts.

The firing chamber is a brick and board combination and is designed to optimize insulation efficiency with low mass.

All FL front-loading high volume production models come equipped with pilot light, welded heavy angle iron frame, stainless steel jacket, and 12-key digital controller for more ramp-hold user programs and multiple features including delay start, preheat, cone offset, skip step and many more for precise firings every time.

The FL4.5E is also equipped with its own breaker box for easy access, safety, and lockout.

What's Included
  • Bartlett V6-CF 12-key Controller
  • Peephole Plugs
  • Mercury Relays in all states except: CA, CT, IL, LA, ME, MA, MI, MN, NH, NJ, NY, NC, RI, VT, WA. (SSRs are recommended as the appropriate approved relay for an additional cost, or you may downgrade to mechanical relays which are available, but not recommended.)
  • Instruction Manual
  • One-year limited warranty (Refer to manufacturer's warranty)

Key Information

Why Upgrade from Mechanical Relays to Solid-State Relays?

Mechanical Relays, which come standard on most kilns have internal moving parts which over time wear out and need to be replaced.  Kiln manufacturers recommend you replace your mechanical relays approximately every 2 years.  Solid-state relays have no moving parts and last far longer than standard mechanical relays and offer far better temperature control during hold times.  Since solid-state relays also have no moving parts to wear out, they NEVER need to be replaced.  You will notice that solid-state relays are silent.  The only sound you will hear is just the reassuring hum of the heating elements.  So, this factory upgrade saves you potential down time from having to wait for new relays to arrive, potential over-fires from relays sticking in the closed position, potential aggravation from having to learn how to remove and replace the mechanical relays yourself.  We think this upgrade is well worth the cost and will save you time and aggravation over the life of your kiln.

Check out the Olympic Kilns Electrical Parts Kits... never experience downtime again because you didn’t have a part on hand!
