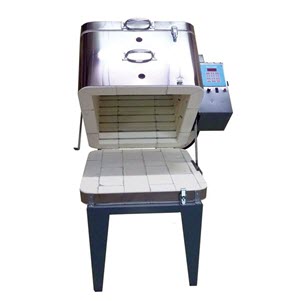

Olympic Kiln - Square 1814GFETLC

$2,60000 $3,25000

Two kilns in one! The Square 1814GFETLC is a top loading and clamshell loading kiln! You get the standard top-loading model plus the clamshell loading which makes flash venting, glass raking and loading shelves with glass positioned easy and convenient.

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Product Specifications
Model:

Olympic Square 1814GFETLC
Inside Dim: 18" (length) x 18" (width) x 13.5" (depth)
Outside Dim 30" (width) x 24" (depth) x 37" (height)
Shelf Size: 16” Square Shelf - NOT INCLUDED
Max Temp: Fires to 1700° F
Voltage: 240 volts
Amperage: 25 amps
Watts: 6000 watts

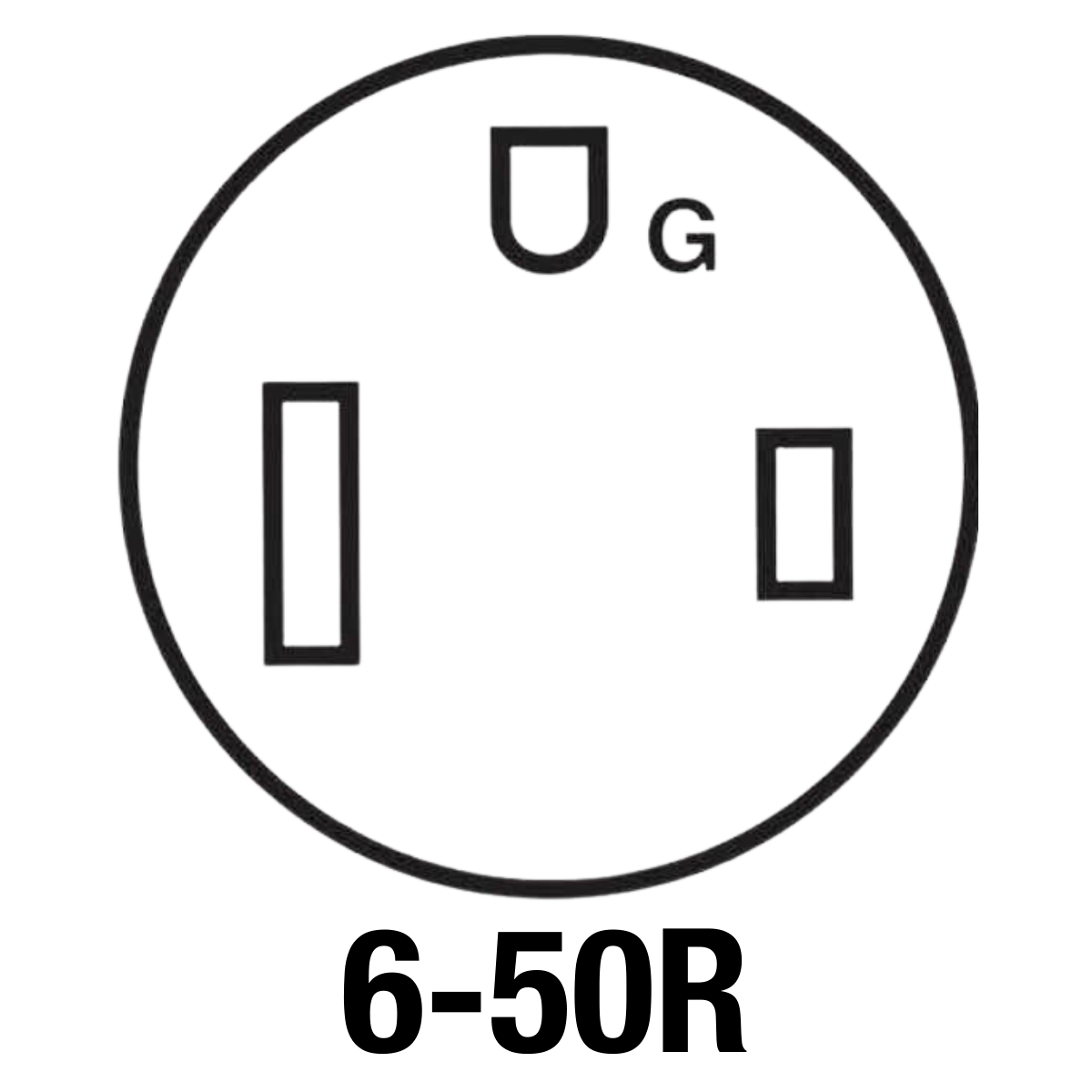

Receptacle: 6-50
Ship Wt: 320# (Freight)

Product Description

Two kilns in one! The Square 1814GFETLC is a top loading and clamshell loading kiln! You get the standard top-loading model plus the clamshell loading which makes flash venting, glass raking and loading shelves with glass positioned easy and convenient.

All Olympic 240 volt glass fusing models are equipped with a lid element for the fusing segment of the glass firing and body elements for the ramping up-down and annealing segments of the firing. An infinite switch controls the intensity of the heat coming from the lid element. If the switch remains in the OFF position, only the body elements will heat the kiln. If the infinite switch is turned to the High position, all elements, both body and lid, heat at the same intensity. The kiln operator may choose to lessen the intensity of the lid element by turning the switch down.

What's Included
  • 3 Key Controller
  • Peephole Plugs
  • Stand
  • Lid Wedge
  • Mechanical Relays
  • Instruction Manual
  • Two-Year Warranty (Refer to manufacturer's warranty)

Key Information

Why Upgrade from Mechanical Relays to Solid-State Relays?

Mechanical Relays, which come standard on most kilns have internal moving parts which over time wear out and need to be replaced.  Kiln manufacturers recommend you replace your mechanical relays approximately every 2 years.  Solid-state relays have no moving parts and last far longer than standard mechanical relays and offer far better temperature control during hold times.  Since solid-state relays also have no moving parts to wear out, they NEVER need to be replaced.  You will notice that solid-state relays are silent.  The only sound you will hear is just the reassuring hum of the heating elements.  So, this factory upgrade saves you potential down time from having to wait for new relays to arrive, potential over-fires from relays sticking in the closed position, potential aggravation from having to learn how to remove and replace the mechanical relays yourself.  We think this upgrade is well worth the cost and will save you time and aggravation over the life of your kiln.

Check out the Olympic Kilns Electrical Parts Kits... never experience downtime again because you didn’t have a part on hand!
