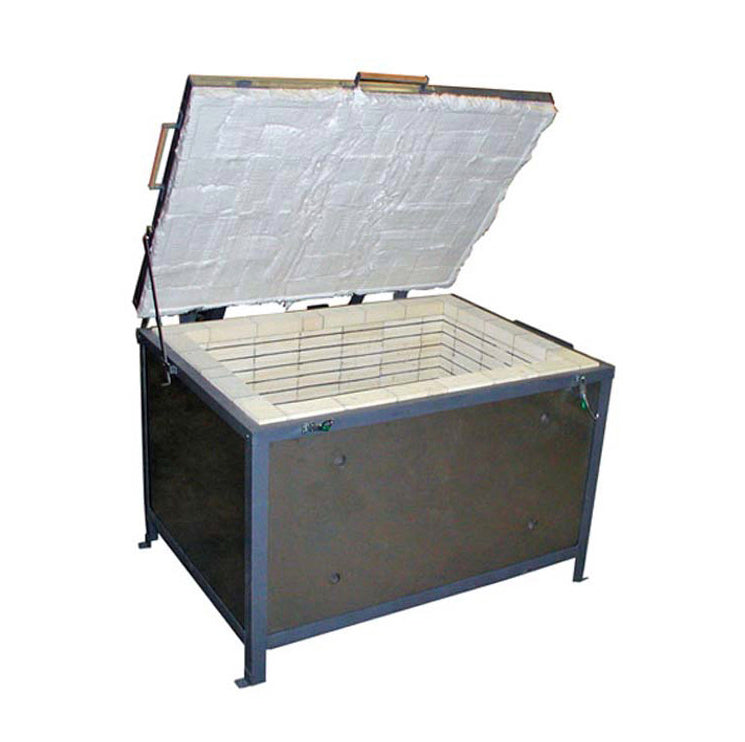

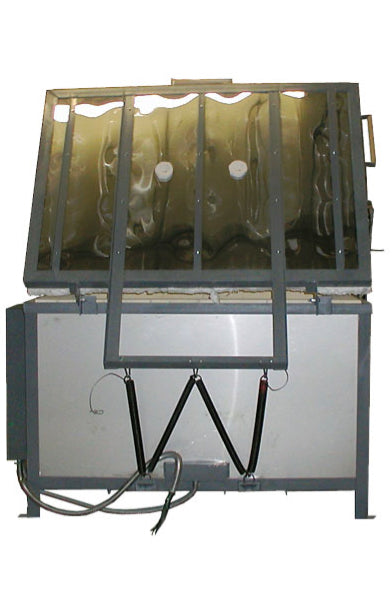

Olympic Kiln - TL5432E

$16,85975 $19,83500

The top-loading large capacity models come equipped with a pilot light, welded heavy angle frame, stainless steel jacket, and 12-key digital Bartlett KilnStar controller for more ramp-hold user programs and multiple features, including delay start, preheat, cone offset, skip step, and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and a cone table for easy look up of temperature and cone number equivalents. The TL5432E is equipped with its own breaker box for easy access, safety, and lockout.

KILNS/OVENS <$7500 SHIP FREE IN US 48!*

Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Product Specifications

Model:

Olympic Kiln - TL5432E

Inside Dim: 54" (width) x 36" (depth) x 32" (height) - 36 Cubic Feet
Outside Dim: 80" (width) x 68" (depth) x 47" (height)
Brick Thickness: 4.5” + 1" Fiber
Max Temp: 2350°F / 1288°C
Voltage: 240 volts / 208 volts / 480 volts
Amperage: 150 amps (Single Phase) / 116 amps (3 Phase)
Watts: 63000 watts
Receptacle: Direct Wired
Ship Wt:  2010(Freight)

Product Description

The top-loading large capacity models come equipped with a pilot light, welded heavy angle frame, stainless steel jacket, and 12-key digital Bartlett KilnStar controller for more ramp-hold user programs and multiple features, including delay start, preheat, cone offset, skip step, and many more for precise firings every time. Messages and Information are available for reviewing a firing profile before or during the firing, viewing the current segment the firing is in, and a cone table for easy look up of temperature and cone number equivalents. The TL5432E is equipped with its own breaker box for easy access, safety, and lockout.

Options include upgrading to the Genesis touchscreen controller, 480-volt, Type S thermocouple, castors, vent, and much more!  Solid-state relays are also an option.

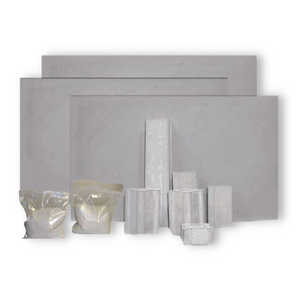

Furniture Kits for Large Capacity Kilns provide four layers of shelving, assorted posts, and a 5-pound bag of kiln wash. Choose the standard furniture kit or build your own with shelves and posts in the quantities required.

What's Included

  • FLAT RATE SHIPPING IN THE CONTIGUOUS US.
  • KilnStar 12-key Controller
  • Peephole Plugs
  • Mecury Relays in all states except: CA, CT, IL, LA, ME, MA, MI, MN, NH, NJ, NY, NC, RI, VT, WA. (SSRs are recommended as the appropriate approved relay for an additional cost, or you may downgrade to mechanical relays which are available, but not recommended.)
  • Pilot Light
  • Welded Heavy Angle Iron Frame
  • Stainless Steel Jacket
  • Breaker Box
  • Instruction Manual
  • One-year limited warranty (The manufacturer's warranty as well as the optional add-on Extended Warranty Protection Plan do not cover a service contractor to provide in-home kiln repairs.)

Key Information

Olympic Kiln - TL5432E - HEATTREATNOW
Olympic

Olympic Kiln - TL5432E

$16,85975 $19,83500
Model:

Olympic Kiln - TL5432E

Inside Dim: 54" (width) x 36" (depth) x 32" (height) - 36 Cubic Feet
Outside Dim: 80" (width) x 68" (depth) x 47" (height)
Brick Thickness: 4.5” + 1" Fiber
Max Temp: 2350°F / 1288°C
Voltage: 240 volts / 208 volts / 480 volts
Amperage: 150 amps (Single Phase) / 116 amps (3 Phase)
Watts: 63000 watts
Receptacle: Direct Wired
Ship Wt:  2010(Freight)
MODEL
PHASE AMPS BREAKER SIZE NEMA PLUG
TL5432E 240V
1 150 200 amp DIRECT
TL5432E 208V
1 173 200 amp DIRECT
TL5432E 240V
3
100 150 amp DIRECT
TL5432E208V
3 116 150 amp DIRECT
