Kilns Under $7500 Ship Free To The US 48!

Paragon Kiln - CT71313

$2,07000 $2,30000

Paragon CT71313

Paragon Kiln - CT71313 - CT71313 - Sentinel - SSR 240v - Single Phase is backordered and will ship as soon as it is back in stock.

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Ergonomic
Design
Balanced Heat
Distribution
Tested for
Toughness

Product Specifications
Model: Paragon CT71313
Dimensions Inside: 13.5" (width) x 13.25" (depth)
Dimensions Outside: 22" (width) x 25.5" (depth) x 28" (height)
Shelf Size: 12" Round Shelf - NOT INCLUDED
Elements: Side Elements
Max Temp: Fires to 2300° F
Voltage: 240 volts
Amperage: 15 amps
Watts: 3600 watts

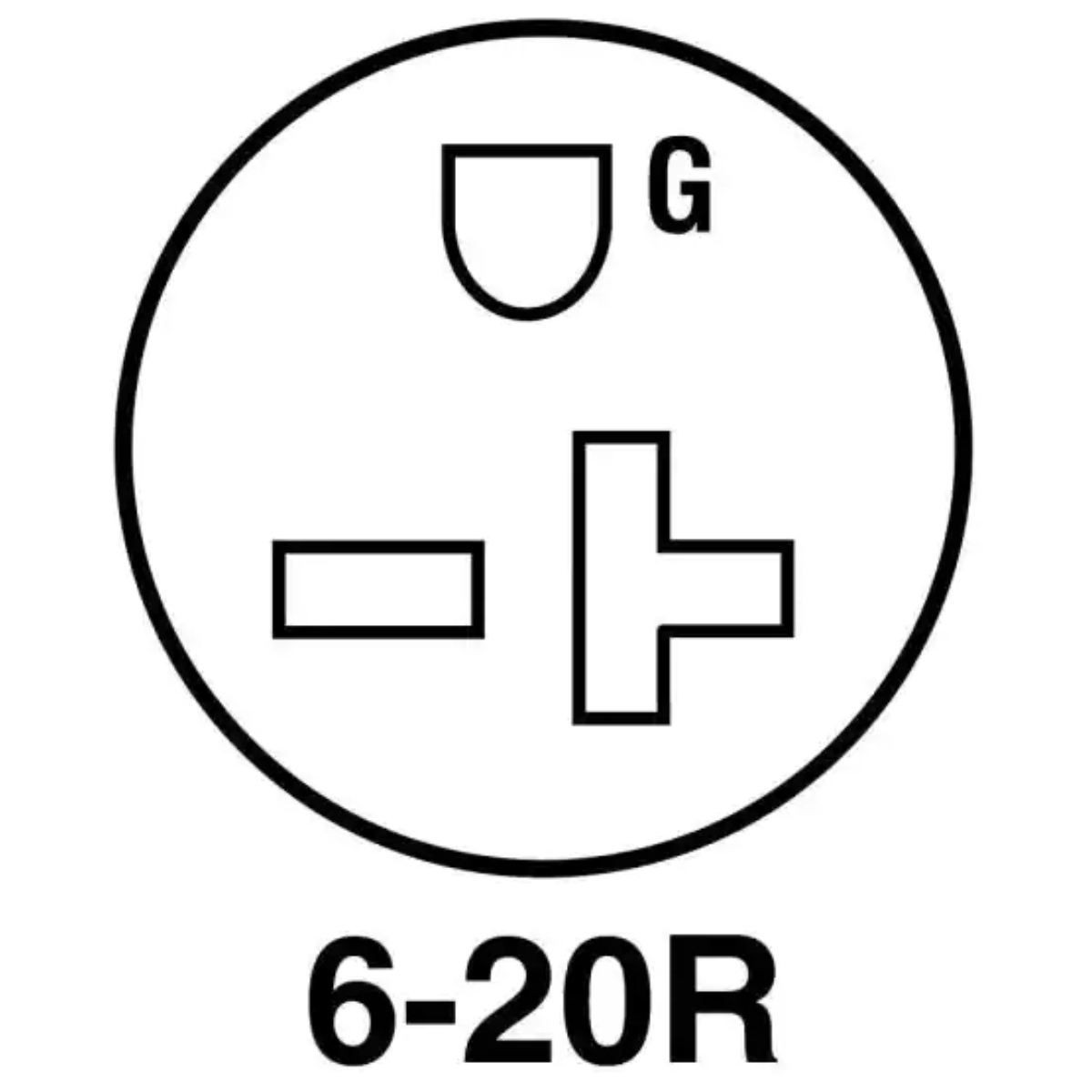

Receptacle: 6-20R
Shipping Weight: 172# (freight)

Product Description

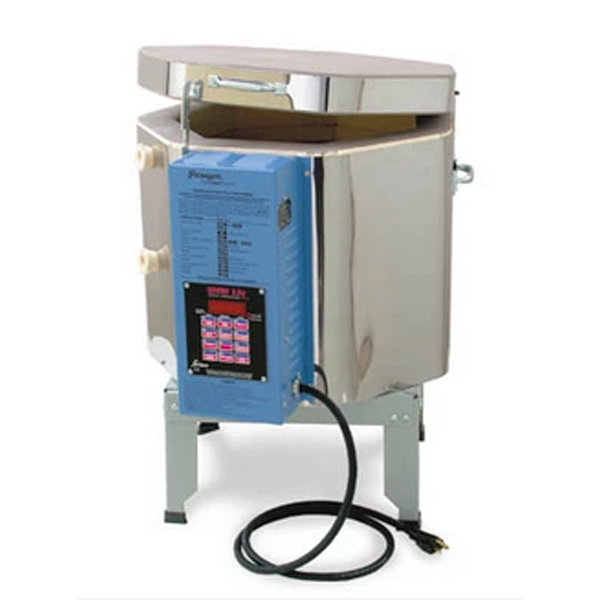

Paragon CT71313

Although it seemed impossible, this kiln has just gotten even better than before! Now with Solid State Relays, Auxiliary Output, and Drilled for Kiln Vent standard!

The 7-sided digital CT71313 is the ideal size for dolls, jewelry, and china, yet still large enough for most ceramic projects. With its 3” firebrick walls, it can fire up to cone 6.

A heavy galvanized steel base covers the reversible brick bottom completely. It folds up under the stainless case on all sides to strengthen the firing chamber. This is one more assurance that your Paragon kiln is built to last.

You will be amazed at the convenience of digital firing. The reliable solid-state Sentinel controller continually monitors the firing so you can spend your time productively without closely watching the kiln. (Please remember, however, to check the kiln during firing and to monitor it near the expected shutoff time.) The sealed touch pad keeps out dust and is easy to wipe clean.

The controller has powerful features that you will enjoy using. Yet we have also worked hard to make the controller user-friendly.

Do you ever wonder how much electricity your kiln uses? The digital controller can figure this out for you with the press of a button. Find out how little a kiln actually costs to fire. Learn to conserve energy by experimenting with firing speed, load density, etc.

What's Included
  • FREE SHIPPING in the contiguous US!
  • Sentinel SmartTouch Controller
  • NEW! SSR (Solid State Relays) with mechanical backups.
  • NEW! Auxiliary Output (AOP).
  • NEW! Drilled for Kiln Vent.
  • Lock-in lid support with a positive catch
  • Two wide-view tapered peepholes
  • Ventilated, louvered switch box
  • 3” firebrick walls
  • Two hand lifts
  • Full-formed, galvanized steel base
  • Fall-away two-stage Prop-R-Vent
  • Coated lid, peepholes, and rim of firebricks
  • Heavy-gauge stainless steel case
  • Full firing capacity: fire ware directly on the brick bottom
  • Reversible brick bottom
  • Dropped, recessed brick grooves, which eliminate element pins
  • Operating instructions on switch box
  • 1-Year Limited Warranty (The manufacturer's warranty does not cover a service contractor to provide in-home kiln repairs.)

Key Information

Thermocouple with “special limit” wire

The thermocouple senses temperature inside the kiln. It is the small rod that extends into the firing chamber. The ¼” wide Type-K, 14-gauge, exposed-tip thermocouple is made with special-limit wire for superior accuracy. The exposed tip gives the controller a fast response time for even temperatures during holds. The thermocouple is made in America to our exacting standards.

Kiln Accessories
Need more for your kiln? Explore more safety, enameling, and other accessories here.

OPTIONAL Tall Heavy Duty Rolling Stand, 18” Square x 18” High

A deluxe, rock-solid kiln stand with locking casters, is now an option. STANDS ARE NOT INCLUDED. Please check the options box if you would like a stand included with your kiln order. You will enjoy the convenience of effortlessly moving the kiln out of the way when not in use. The stand is rock solid. It fits together with interlocking components that assemble with one size of bolt. (Ships unassembled.)

The 12” tall stand raises the kiln to a convenient height for loading and unloading. Should you need a vent, merely slide the collection cup of an Orton vent into a mounting bracket on the top of the stand.

Take advantage of the heat that radiates from the kiln. Load greenware on the lower shelf. Heat from the kiln will dry the ware to prepare it for the next firing. Save the time and electrical expense of drying the ware inside the kiln.

Assemble the stand with simple tools. The stand slides together with interlocking components that assemble with one size of bolt.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Paragon Kilns

Paragon Kiln - CT71313

From $2,07000 $2,30000
Model: Paragon CT71313
Dimensions Inside: 13.5" (width) x 13.25" (depth)
Dimensions Outside: 22" (width) x 25.5" (depth) x 28" (height)
Shelf Size: 12" Round Shelf - NOT INCLUDED
Elements: Side Elements
Max Temp: Fires to 2300° F
Voltage: 240 volts
Amperage: 15 amps
Watts: 3600 watts
Receptacle: 6-20R
Shipping Weight: 172# (freight)





Choose Your Kiln

  • CT71313 - Sentinel - SSR 240v - Single Phase
  • CT71313 - Sentinel - SSR 240v - Three Phase
  • CT71313 - Sentinel - SSR 208v - Single Phase
  • CT71313 - Sentinel - SSR 208v - Three Phase
View product
