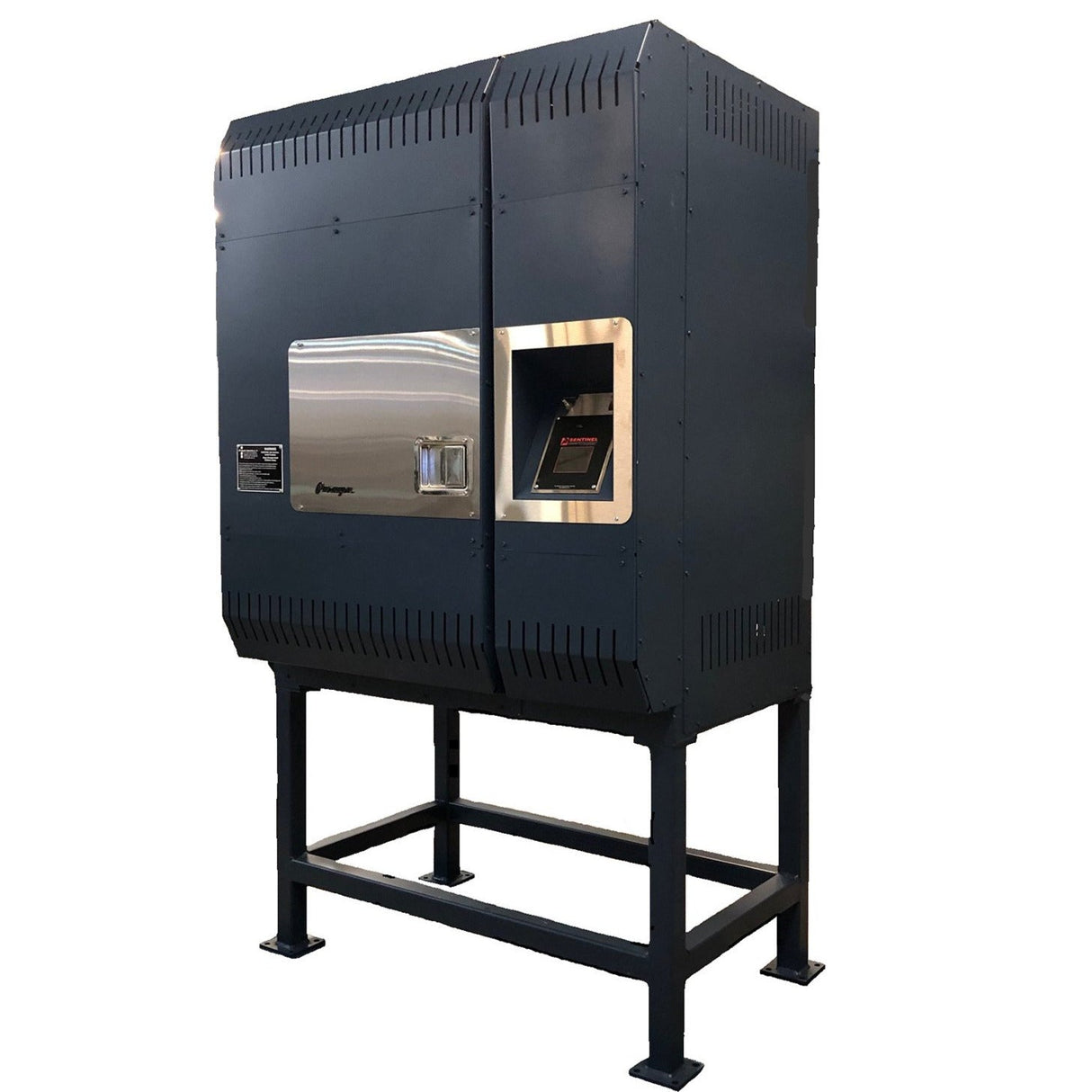

Paragon Kiln - Heat Vault 36

$8,79969 $9,77743

The Heat Vault 36 is all about power and versatility, and most of all... MORE USABLE VOLUME IN A SMALLER FOOTPRINT!  You get 6.75 cubic feet of space is less floor space than ever before!

Paragon Kiln - Heat Vault 36 - Sentry / 12-Key Controller w / 22" stand is backordered and will ship as soon as it is back in stock.

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Product Specifications
Model: Paragon Heat Vault 36
Dimensions Outside: 39.7" (width) x 27.7" (depth) x 71" (height) inc. 22" stand
Dimensions Inside: 18" (width) x 18" (depth) x 36" (height)
Elements: Side Elements
Max Temp: Fires to 2350°F, Cone 10
Voltage: 240 volts / 1 Phase - Available in 208V and 3 phase
Amperage: 60 amps
Watts: 14,250 watts
Receptacle: Direct Wire
Shipping Weight: 730 lbs. (freight)

Product Description

The Heat Vault 36 is all about power and versatility, and most of all... MORE USABLE VOLUME IN A SMALLER FOOTPRINT!  You get 6.75 cubic feet of space is less floor space than ever before!

This special production kiln can be configured for ceramic production, heat treating, and glass production depending upon your specific needs. We've designed tailor-made packages for each industry and application to give you all the things you need in a "perfect" kiln.

The Heat Vault 36 has everything you need, plus all the add-on extras you really want in convenient packages!

Pick the Package that's right for you!  See the drop-down menu above for pricing.

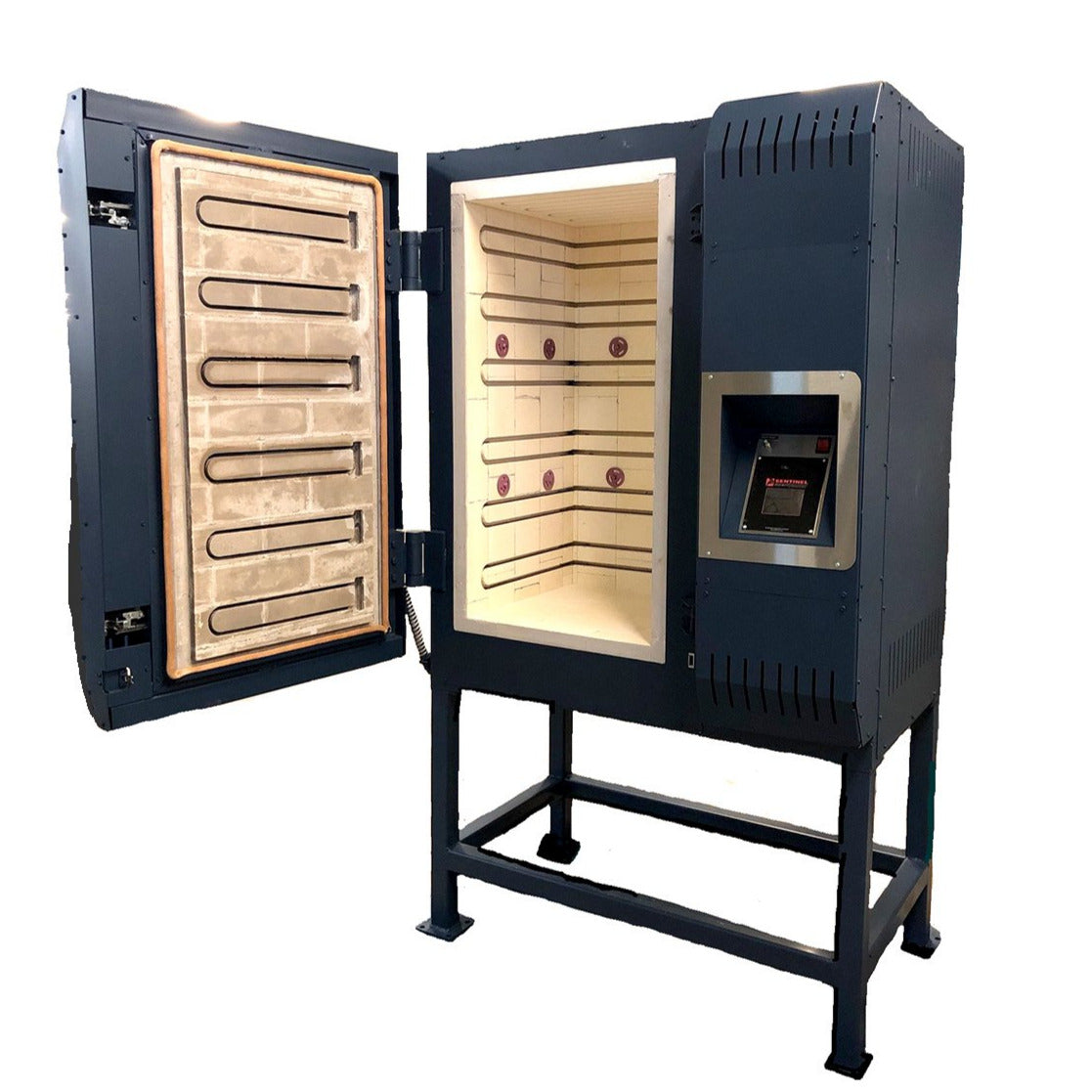

(Kiln show in the picture has door elements not included in every package.)

What's Included

Includes:

FREE SHIPPING in the contiguous US!

Sentinel SmartTouch Controller

3” thick walls, top and door

Type-K thermocouple with ¼” sheath, or optional type-S

Proportional power elements for more even heating

3” thick reinforced firebrick floor.

Kanthal Iron Chrome Elements for extended life

22" Stand with Shelf

Standard Color: Cavalry Blue/Gray

Front Loading Spring Style Door

1-Year Limited Warranty (The manufacturer's warranty as well as the optional add-on Extended Warranty Protection Plan do not cover a service contractor to provide in-home kiln repairs.)

Key Information

AVAILABLE OPTIONS:

Sentinel Touch Screen Controller

Orton Ventmaster (Auxiliary Output Plug - 240V) digitally controlled

Safety Interlock Switch (locks the door during firing)

Fiber Lid w/ Elements

Door With Elements

Gas Inlet Flow Meter with Solenoid

Solid State Relays

Mercury Relays

These options are available in the following packages:

STUDIO PACKAGE: Comes with the Sentinel Touch Screen Controller and the Orton Ventmaster System fully installed with a 240-volt Auxiliary Output Plug. This allows the controller to automatically control when the vent cycles on and off during each segment. Upgraded Solid State Relays are installed and a Door Switch which cuts the power when the door is opened, this is ideal for keeping you safe when opening the door during Raku firings, or for classroom safety.

INDUSTRIAL PACKAGE: Comes with the Sentinel Touch Screen Controller and the Orton Ventmaster System fully installed with a 240-volt Auxiliary Output Plug. This allows the controller to automatically control when the vent cycles on and off during each segment. A Gas Inlet Flow Meter and Solenoid for neutral gas introduction thus reducing oxidation. This allows the controller to automatically control when the gas is introduced into the chamber and cycles on and off during the firing segments. Upgraded 4-sided heat chamber with Added Door Elements. Upgraded Solid State Relays for tighter temperature control and a Door Switch which cuts the power when the door is opened, this is ideal for shop safety.
