Paragon Kiln - Janus Dragon All Media Kiln

$11,43000 $12,70000

The Paragon Janus Dragon kiln is an industrial furnace for mixed media; Pottery/Glass/Metals. And considering its features, it is surprisingly affordable.

Paragon Kiln - Janus Dragon All Media Kiln - Sentinel TouchXpress - 240V - Single Phase - 24" Stand is backordered and will ship as soon as it is back in stock.

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Ergonomic
Design
Balanced Heat
Distribution
Tested for
Toughness

Product Specifications
Model: Paragon Janus Dragon
Dimensions Inside: 24" (width) x 24" (depth) x 27" (height)
Dimensions Outside: 43.8" (width) x 39.3" (depth) x 69" (height)
Elements: Side Elements
Max Temp: Fires to 2350°F, Cone 10
Voltage: 240 volts / 1 Phase - Available in 208V and 3 phase
Amperage: 70 amps
Watts: 16,800 watts
Receptacle: Direct Wire
Shipping Weight: 905 lbs. (freight)

Product Description

The Paragon Janus Dragon kiln is an industrial furnace for mixed media; Pottery/Glass/Metals. And considering its features, it is surprisingly affordable.

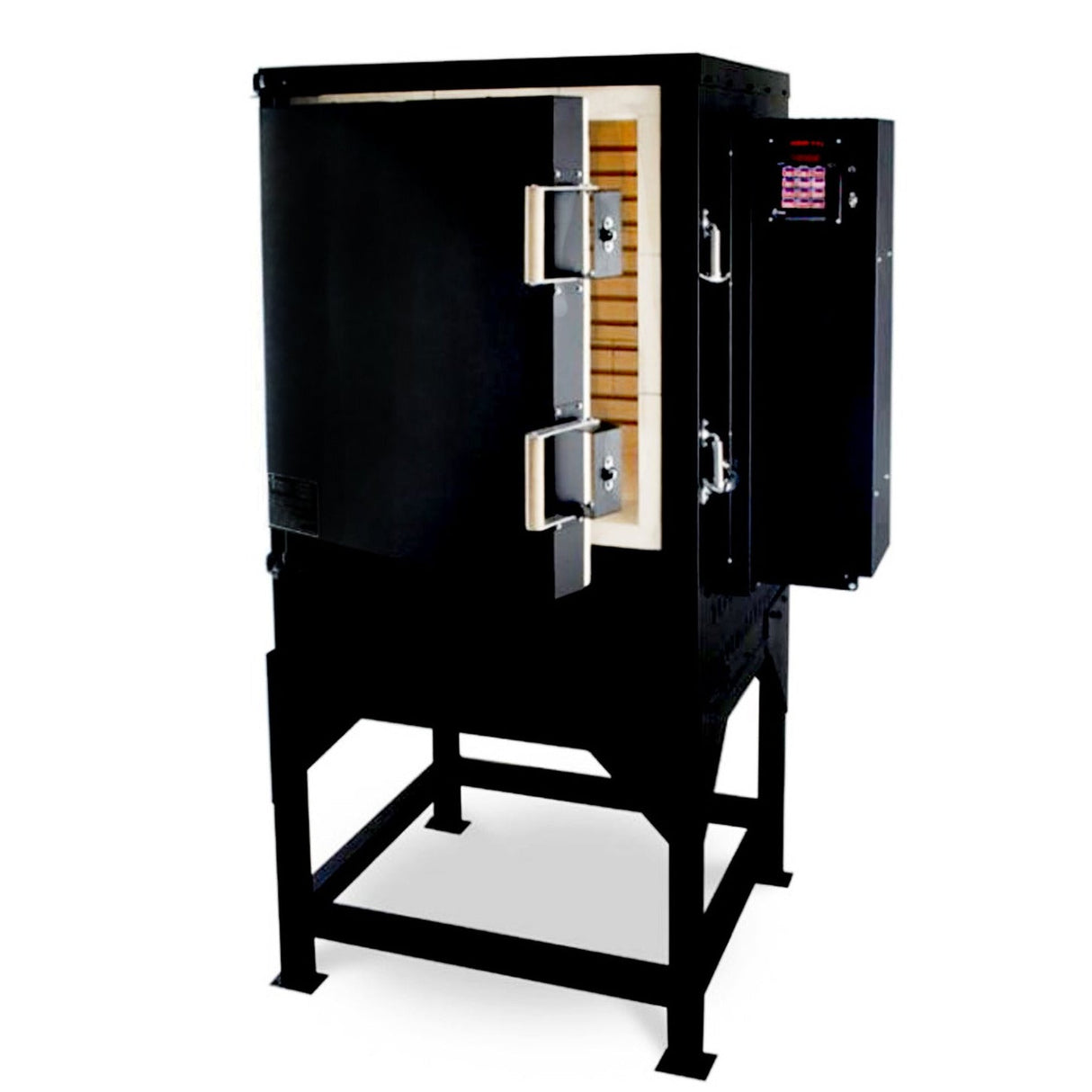

The Paragon Janus Dragon mixed media kiln exudes power. Its 16,800 watts heat the 24” wide, 24” deep, 27” high interior to cone 10 with ample power to spare. Dropped, recessed grooves seat industrial-gauge wall and roof elements. (You can even order the optional door elements.) Real heat control when and where you need it!

What's Included
  • FREE SHIPPING in the contiguous US!
  • High-Heat/Low-Heat Temp Selection switch
  • Sentinel SmartTouch Controller
  • Mercury Relays
  • Mercury Relays not allowed in the following states: CA, CT, IL, LA, ME, MA, MI, MN, NH, NJ, NY, NC, RI, VT, WA. (SSRs are recommended as the appropriate alternative upgrade) **If you need this kiln with Solid State Relays instead of Mercury Relays for your state, please contact us for pricing.
  • 4” thick walls, top and door are made of 3” firebrick backed by 1” of ceramic fiber block insulation.
  • Type-K thermocouple with ¼” sheath, or optional type-S
  • Proportional power elements for more even heating
  • 4 ½” thick reinforced firebrick floor.
  • Case temperature at cone 10: 170°F (compared to 400-500°F for standard firebrick kilns)

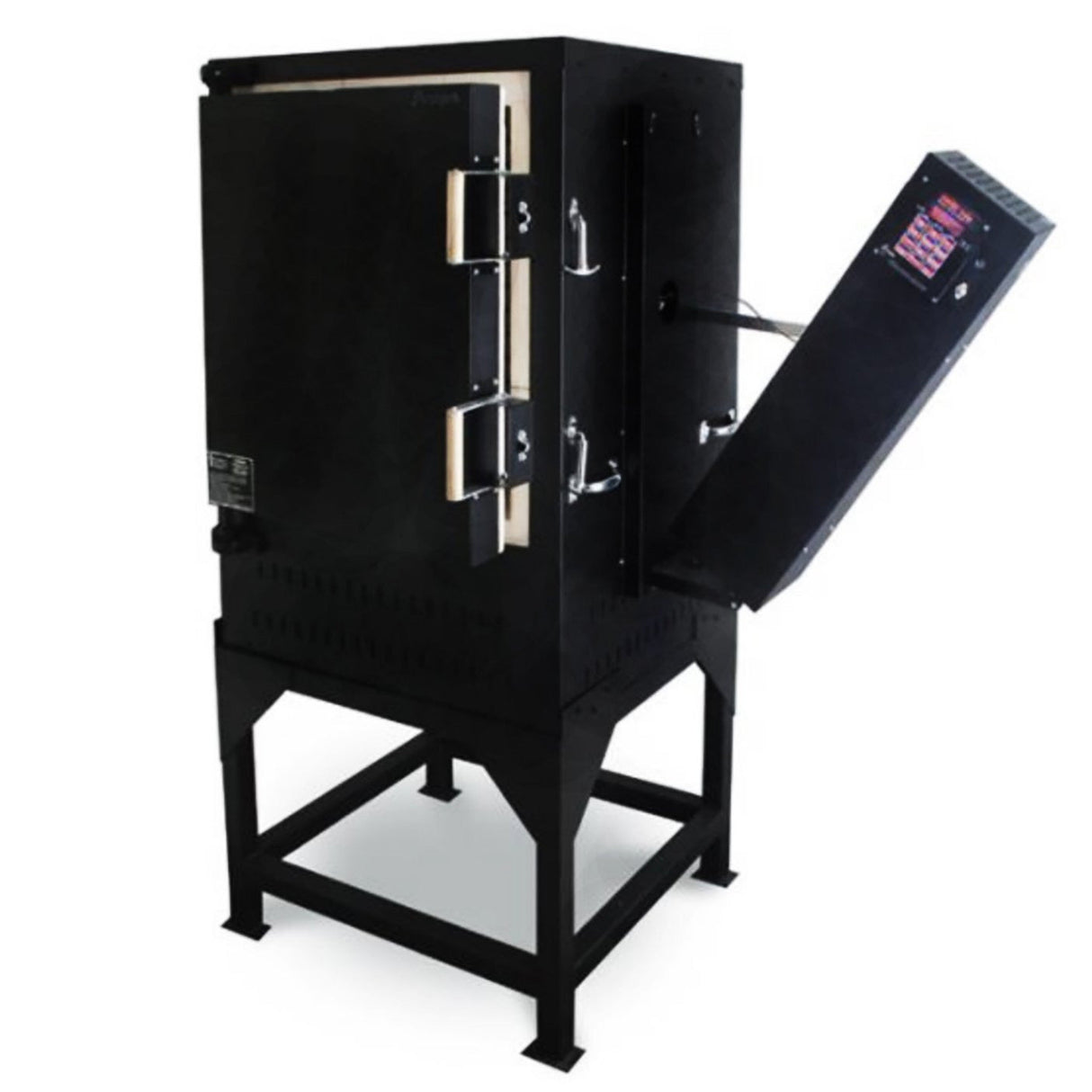

  • Ventilated and hinged switch box is generously slotted for air circulation1 ½” air gap between the switch box and kiln; electrical components stay cool and last longer.
  • 2-Year Limited Warranty (The manufacturer's warranty does not cover a service contractor to provide in-home kiln repairs.)

Key Information

High-Heat/Low-Heat Temp Selection Modes

Select between glass and pottery with the flip of a switch. With the switch in the glass position, heat comes from the top elements and the middle sidewall element. With the switch in the pottery position, heat comes from only the sidewall elements.

In the glass mode, fuse and sag large glass projects placed on a single shelf. In the pottery mode, fire to cone 10. You can also fire several shelves of smaller glass pieces using the pottery mode.

Advanced element grooves

The elements in the roof are mounted in a firebrick “ball” groove that eliminates element pins. The element coils are wider than the groove opening, so the elements stay in place without pins.

Heavily insulated

Extra insulation saves energy. The 4” thick walls, top and door are made of 3” firebrick backed by 1” of ceramic fiber block insulation. The floor is 4 ½” thick firebrick. The extra insulation not only saves energy but also cools slowly. This gives the micro-crystalline structure and color of the glaze sufficient time for full development.

Convenient front loading

Potters who struggle with top-loading kilns will enjoy the Janus Dragon. The door swings open wide on a heavy ¾” steel rod with sealed bearings. Two spring-loaded latches press the door tightly closed.

Doorway Clearance

The Paragon Janus Dragon kiln will fit through a 34” doorway if the handles and back element cover are temporarily removed.

Optional colors at no extra charge.

**The following states have prohibited the import of Mercury Displacement Relays within their jurisdictions. You are ordering a unit that is built with MDRs as standard. In this case, the manufacturer must substitute Solid-State Relays in place of the MDRs. This is not a 1:1 swap and will require an upcharge. By ordering this unit, you acknowledge that you understand that we will contact you with the associated additional charges. CA, CT, RI, IL, NH, MA, MN, ME, VT, NY, LA, MD, WI**
