    Cress Furnaces - AE1520DW

    $29,297.00 USD
    $28,418.09 USD
    Ask a question


    • American Express
    • Diners Club
    • Discover
    • Mastercard
    • Shop Pay
    • Visa

    Product description

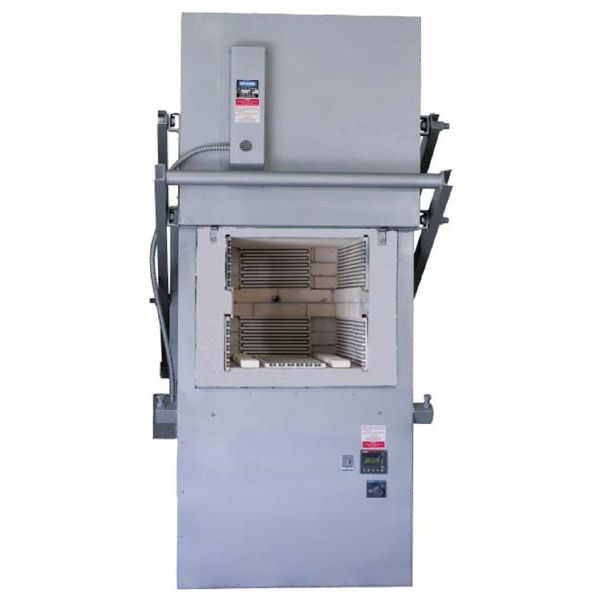

    Model: Cress Furnaces - AE1520DW
    Dimensions Inside: 15" (length) x 15" (width) x 15" (height)
    Dimensions Outside: 46" (length) x 33" (width) x 67" (height)
    Elements: Side , Bottom and Door Elements
    Max Intermittent Temp. 1250° F
    Max Continuous Temp: 1200° F
    Input Power:
    9 kW
    Voltage: Optional 208V & 480V
    Shipping Weight: 1400# (Motor Freight)


    • Watlow Programmable Controller
    • Solid State Relays
    • Programmable Alarm
    • Responsive Thermocouple
    • Safety Switch
    • High Limit Control and Contactor
    • 1-Year Limited Warranty (Refer to manufacturer's warranty

    Uses: These furnaces are designed for heavy duty, larger volume jobs requiring controlled temperatures up to 2100°F continuous or 2250°F intermittent.

    Controls: These furnace come standard with a digital programmable main control and a digital high limit safety control. Solid state power switching to the heating elements, and dual door limit safety switches that interrupt power to the elements when the door is opened.

    Elements: High temperature alloy wire elements are mounted in porcelain plates on the walls and floor and in grooves in the brick door, this provides all around heating and close gradients throughout the furnace chamber. A ceramic hearth plate covers the floor element.

    General Construction: Case is finished in a pleasing gray hammertone. The counter-weighted vertical rising door keeps the hot face away from the operator, it opens easily, remains securely in both the open and close positions and includes a kaowool® rope seal. All walls and door are constructed of 4 1/2" of the finest quality insulating fire brick backed up by 2" of 1800°F block insulation. This combination of insulation and wall thickness helps to give fast heat up and excellent heat retention for economical operation.
