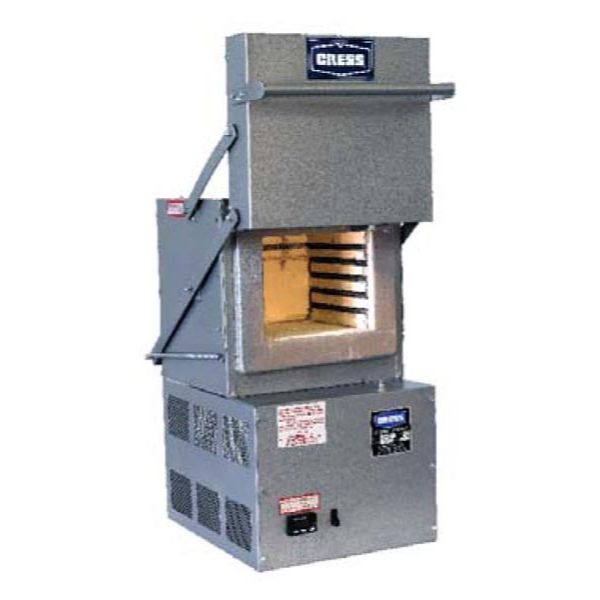

Cress Furnaces - C401H

$2,22600

These models are designed for those users who require automatic temperature controlled furnaces from 250° F to 2000° F (Model C-601) or up to 2250° F (Model C401H).

KILNS/OVENS <$7500 SHIP FREE IN US 48!*
Encrypted Payment Protection
  • Amazon
  • American Express
  • Apple Pay
  • Discover
  • Mastercard
  • Shop Pay
  • Visa

Need a Custom Quote?

Purchasers agree to the terms of service.

Product Specifications
Model: Cress Kilns - C401H/PMT3T
Dimensions Inside: 9" (length) x 6.5" (width) x 5.5" (height)
Dimensions Outside: 17.5" (length) x 15.5" (width) x 22" (height)
Elements: Side Elements
Max Intermittent Temp. 2250° F
Max  Continuous Temp: 2000° F
Input Power:
 1.6 kW
Receptacle: 115V Outlet
Shipping Weight: 100# (Motor Freight)

Product Description

These models are designed for those users who require automatic temperature controlled furnaces from 250° F to 2000° F (Model C-601) or up to 2250° F (Model C401H).

What's Included
  • Watlow PM3T Programmable Controller
  • Solid State Relays
  • Responsive Thermocouple
  • Safety Switch
  • 1-Year Limited Warranty (Refer to manufacturer's warranty)

Key Information

At A Low Cost: An ideal unit for many of the small jobs found in Tool rooms, Production Shops or Laboratory.

Temperature Control: Auto tuning microprocessor-based controller.

Elements: C-601 chrome nickel wire. C401H-high temperature iron-aluminum wire.

Wiring: furnace is completely wired and equipped with cord ready to plug into a 115 volt outlet. control, relay and wiring connections are enclosed on the base.

General construction: Furnace case of sheet steel is assembled by use of electrical welding and sheet metal screws. The spring counter-balance door rises vertically on lever arrangement keeping the hot face away from operator. The C401H walls and door are constructed of high quality insulating brick backed by 1800° F block insulation. Furnace is finished in heat resistant hammer tone gray.

Safety switch: These models come equipped with a door safety switch. when door is opened, power is disconnected from the heating elements.
