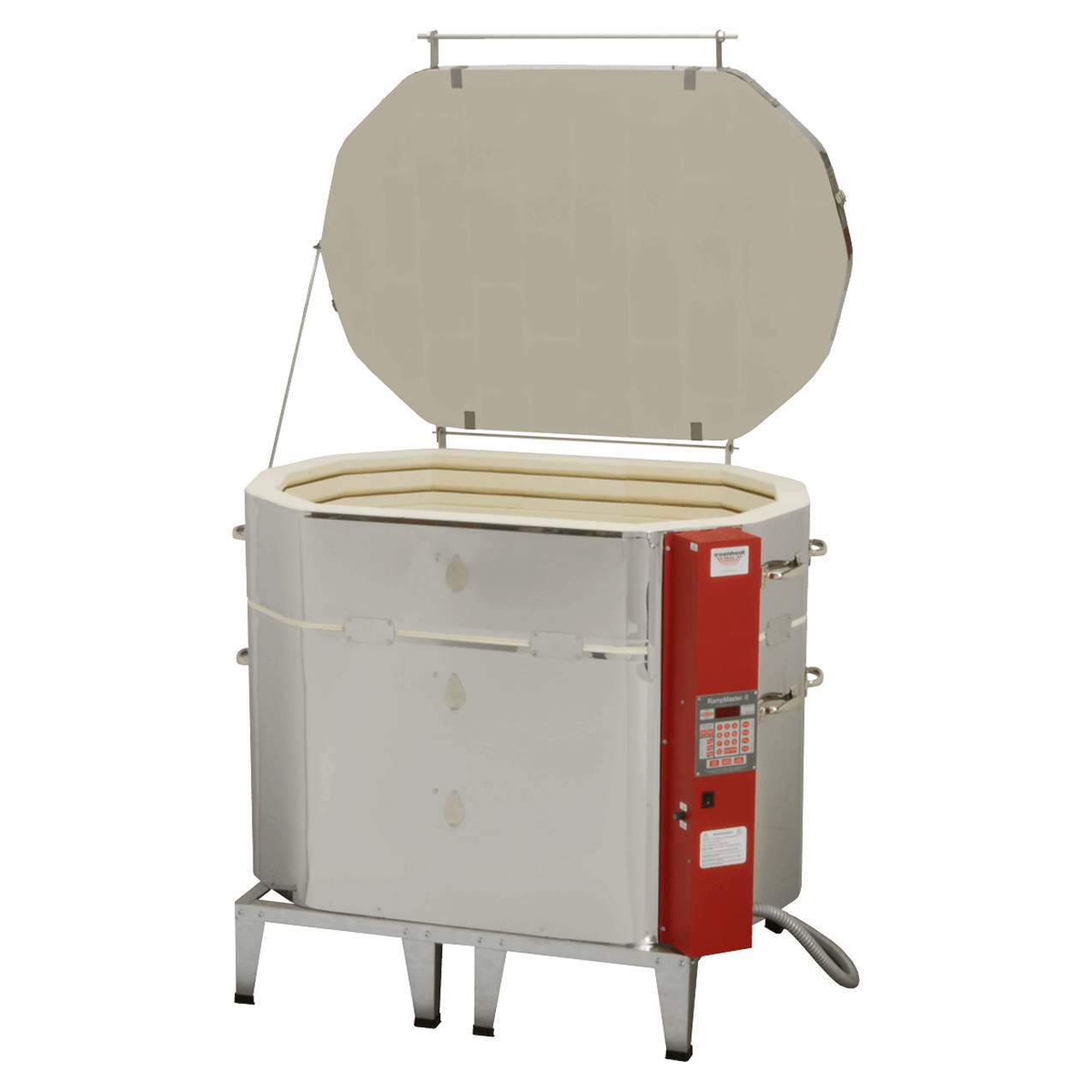

Evenheat Kiln - RM II 2541

Top Load

The RM 2541 is a top loading design and offers a chamber 41" wide x 25.25" Long x 29" Deep. It's Evenheat's largest firing chamber at 14.4 cubic feet.

Lid Handle

Handles have to be properly sized and shaped for the job. Evenheat's lid handles make this point by offering an long handle that's easy to grasp and operate. This wide, corner mounted handle allows for confident and easy lifting, even with a gloved hand.

Swing View Equipped

The RM 2541 temperature controls are fitted to a Swing View Adjustable Enclosure. The swing view is a pivoting, swing-up enclosure that allows you to
rotate the control to a comfortable viewing and programming angle.

The swing view pairs well with touchscreen controls like the TAP II, Icon+ and Icon as viewing angle can be perfectly aligned.

Swing-Away Peephole Covers

These kiln designs feature swing-away peephole covers as opposed to plugs. Plugs get lost and they get broken. The attached peephole covers remain on the kiln and simply swing open and closed. You won't lose them and they certainly won't break.

Lid Prop

The RM 2541 is provided with a lid prop bar that positively keeps the lid in the open position. Simple operation is made even easier with our well designed lid handle.

Relay Access Port

The RM 2541  incorporates a Relay Access Port for simple, no-panel-off relay replacement. Simply remove the access plate to gain access to the mechanical relays. There's no need to remove the control panel and dig into the internal wiring. It's absolutely simple and effective!

It's a given that mechanical relays will fail at some point. This relay access port really comes in handy when they do.

Single Maintenance Line & Full Jackets

This 29" deep models feature a "Maintenance Line". The Maintenance Line is a split in the jacket between the upper and lower chamber that allows these models to be partially disassembled for ease in element replacement and kiln installation.

The upper chamber section is held securely in place through the use of stainless steel plates and screws. Simply remove the screws and separate the sections for maintenance or installation. Evenheat does not use buckles to hold the sections together as they tend to loosen and allow shifting during loading, unloading and use.

Options:

Multiple Control Options

The RM 2541 is available in a variety of controls including the Icon+, Tap II and Rampmaster II. Evenheat takes the best control platforms on the market and makes them even better by adding Special Limits thermocouples for precise temperature sensing and non-metallic faceplates for stellar Wi-Fi reception for on-line Apps. Visit the Controls tab to learn more about controls and why they represent the very best that you can get.

Quiet Drive Solid State Relay Option

The RM 2541 is available with a Quiet Drive Solid State Relay option. The Quiet Drive Solid State Relay System offers tight temperature control, high reliability and increased heating element life. The company fully expects its solid state relay to last the life of the unit.

Why Upgrade from Mechanical Relays to Solid-State Relays?

Mechanical Relays, which come standard on most kilns have internal moving parts which over time wear out and need to be replaced.  Kiln manufacturers recommend you replace your mechanical relays approximately every 2 years.  Solid-state relays have no moving parts and last far longer than standard mechanical relays and offer far better temperature control during hold times.  Since solid-state relays also have no moving parts to wear out, they NEVER need to be replaced.  You will notice that solid-state relays are silent.  The only sound you will hear is just the reassuring hum of the heating elements.  So, this factory upgrade saves you potential down time from having to wait for new relays to arrive, potential over-fires from relays sticking in the closed position, potential aggravation from having to learn how to remove and replace the mechanical relays yourself.  We think this upgrade is well worth the cost and will save you time and aggravation over the life of your kiln.
